Home > products > CNC Router Machine >

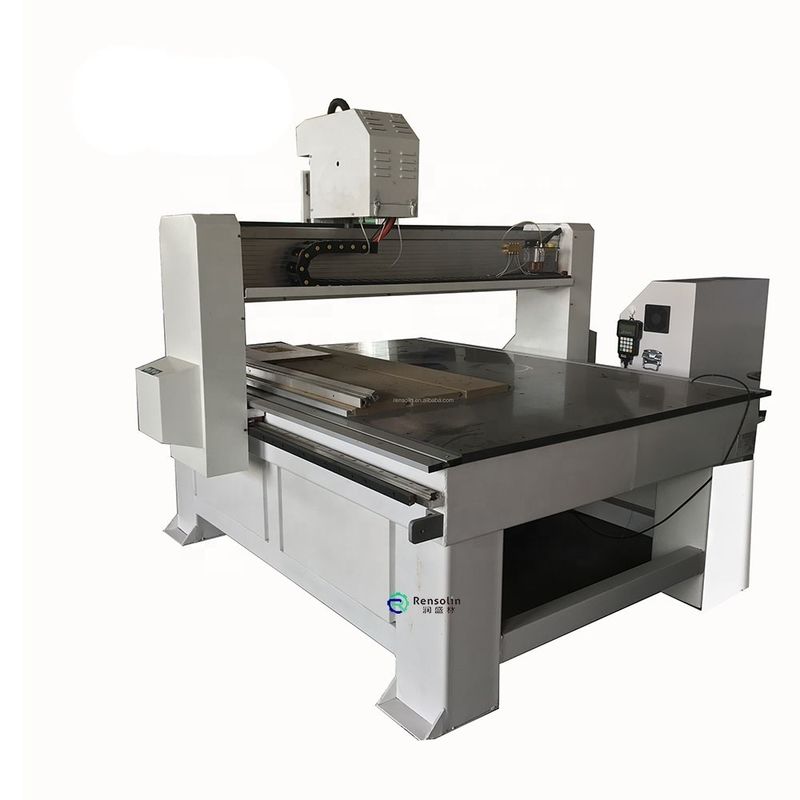

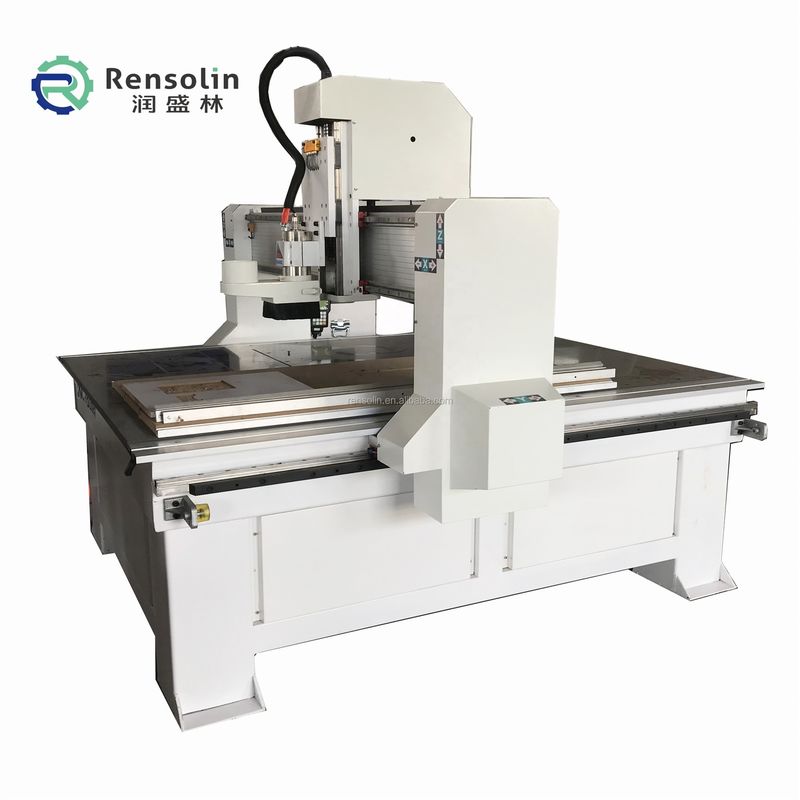

3 Axis CNC Router Machine For MDF Furniture CNC Milling Machine 1300 X 1300MM

3 Axis CNC Router Machine

MDF Furniture CNC Router Machine

CNC Milling Machine 1300 x 1300MM

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

3 Axis CNC Router Machine For MDF Furniture CNC Milling Machine 1300 X 1300MM

Product Details

Condition:

New

Range Of Spindle Speed(r.p.m):

18000 - 35000 Rpm

Positioning Accuracy (mm):

0.02 Mm

Number Of Axes:

No. Of Spindles:

Optional

Working Table Size(mm):

1300*1300

Machine Type:

CNC Router

Travel (X Axis)(mm):

1500 Mm

Travel (Y Axis)(mm):

3000 Mm

Repeatability (X/Y/Z) (mm):

0.02 Mm

Spindle Motor Power(kW):

7.5KW

CNC Or Not:

CNC

Voltage:

220v/380v/415v

Weight (KG):

1100

Warranty:

2 Years

Key Selling Points:

Competitive Price

Applicable Industries:

Hotels, Machinery Repair Shops, Retail, Advertising Company, Woodworking

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

2 Years

Core Components:

Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine

Product Name:

Cnc Router Machine

Voltage:

380V/220V/415V

Models:

RSL1313S

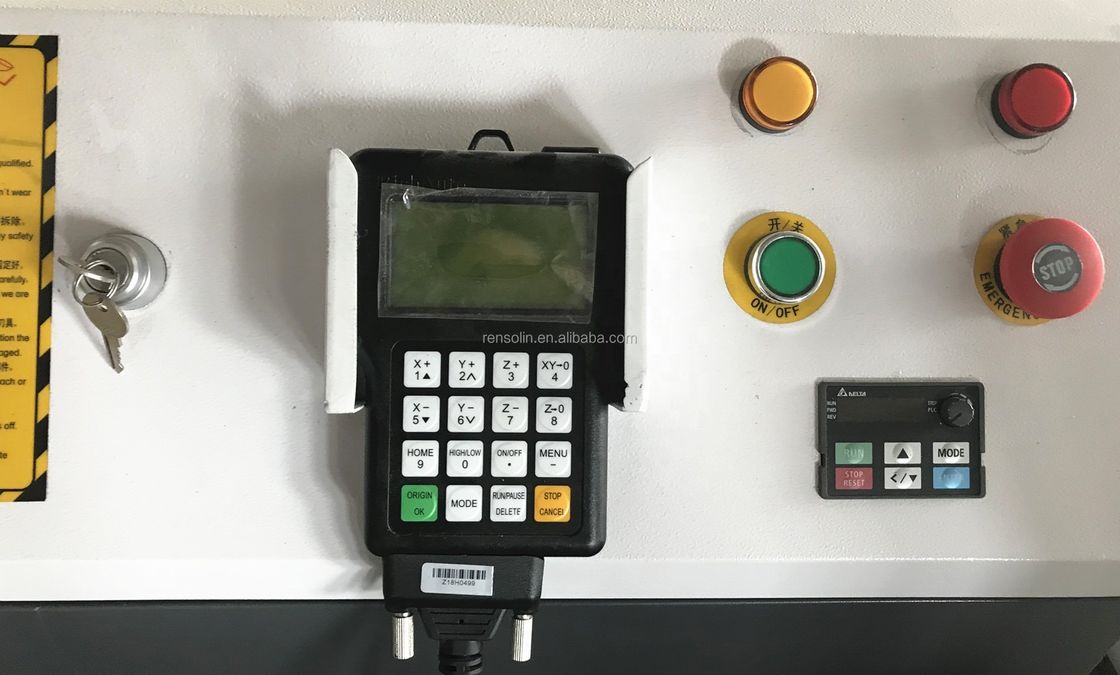

Control System:

DSPA11

XYZ Working Area:

1300*1300*200

XY Movement:

Rack And Pinion,gear Drive/taiwan

Z Movement:

German Ballscrew

Max Speed:

35000mm/min

Max Cutting Speed:

25000mm/min

Inverter:

Fuling

Port:

Qingdao,China

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$3,699.00/sets 1-4 sets

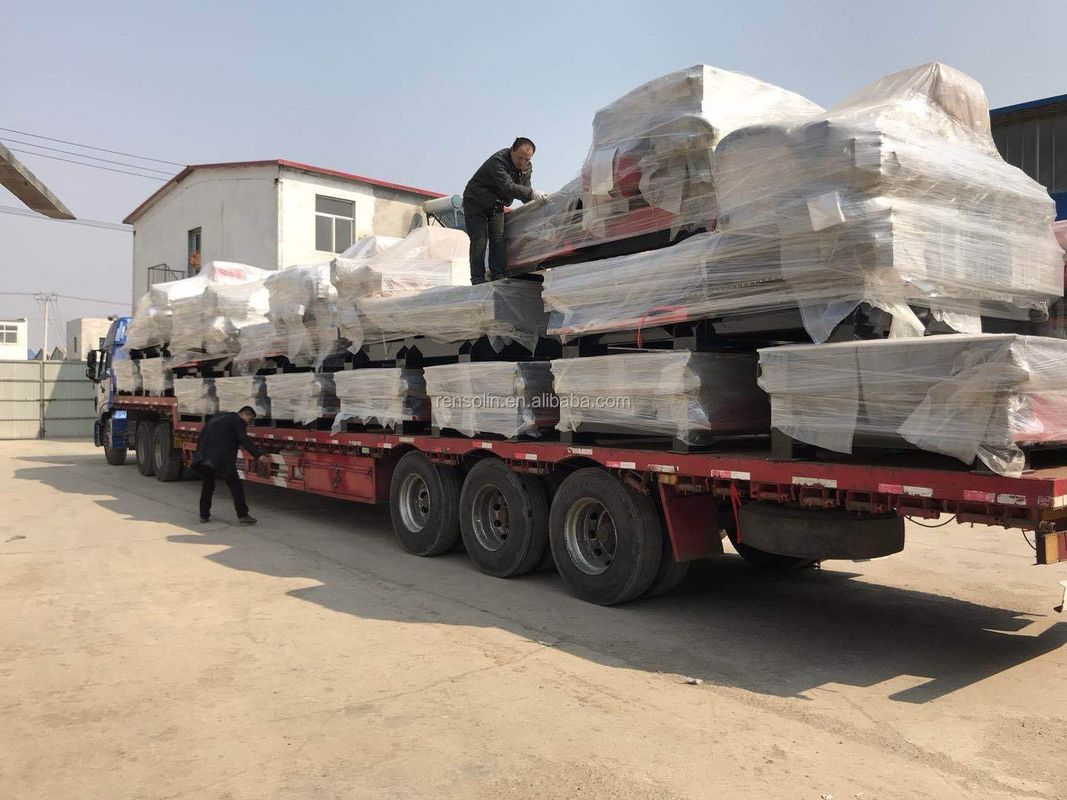

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

2500mm Y Axis Travel CNC Router Machine Cnc Wood Router Carving Cutting

Get Best Price

RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm

Get Best Price

Contact Now

Product Description

Affordable price door making 3d wood cnc router machine for sale

3 Axis CNC Milling Machine for MDF Furniture Acrylic 1325 Working Table Size 1300*1300

Products Description

Product Paramenters

product advantages

1.Rensolin CNC Router-T-table+PVC work table

Large-format aluminum countertops, strong load-bearing, stable and durable, PVC countertops non-slip, better protection of aluminum countertops

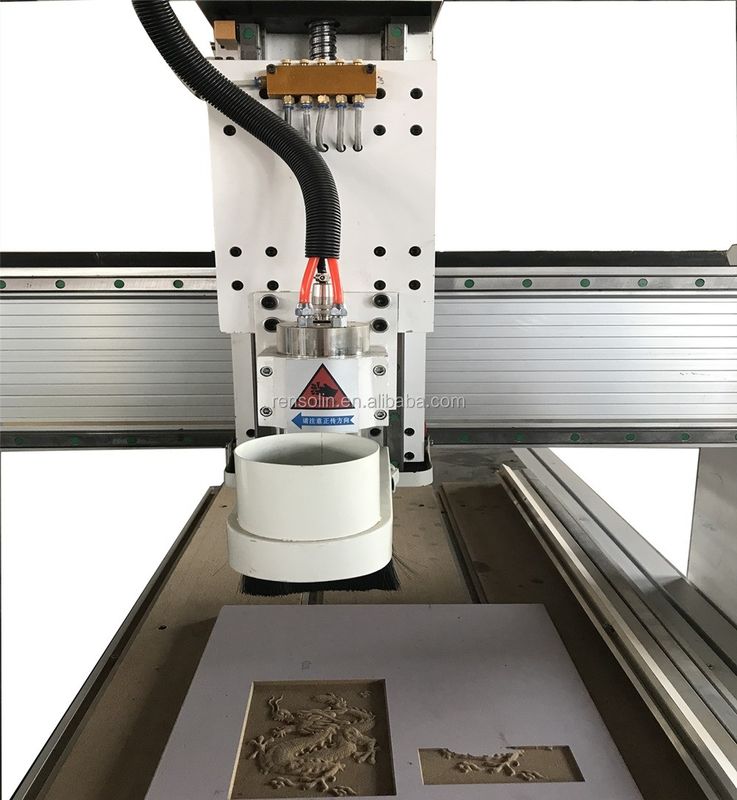

2. Rensolin CNC Router-Air-cooled, 6kw Powerful Spindle

The main spindle is driven by double motors and double-toothed transmission. The main shaft has a fast working speed and high working efficiency without any saw tooth pattern. The cutting edge is very clear and smooth, and the carving is precise.

3. Rensolin CNC Router- Strong Steel Gantry

The one-centimeter-thick square steel gantry after heat treatment is adopted. The integral planer of the gantry has good rigidity, more stable operation and higher machine accuracy.

4. XY with helical rack ,Z with ball screw

Use Taiwan HIWN brand. Square guide rail with 20/25mm. stable running, strong bearing, won't deformed after long time working Helical rack with 1.25M. bigger working strength.

SERVICE

PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you
