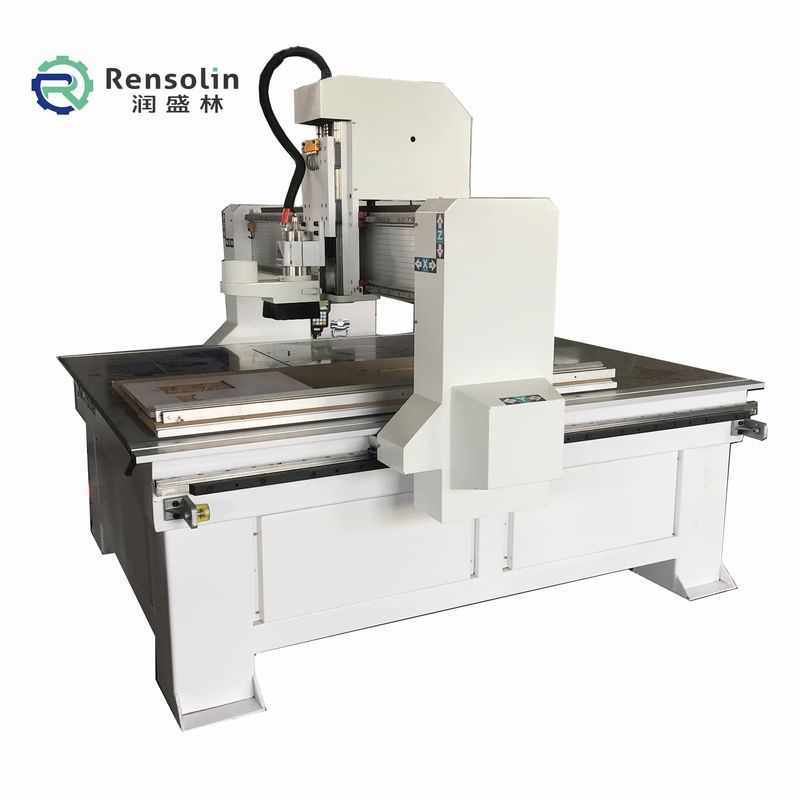

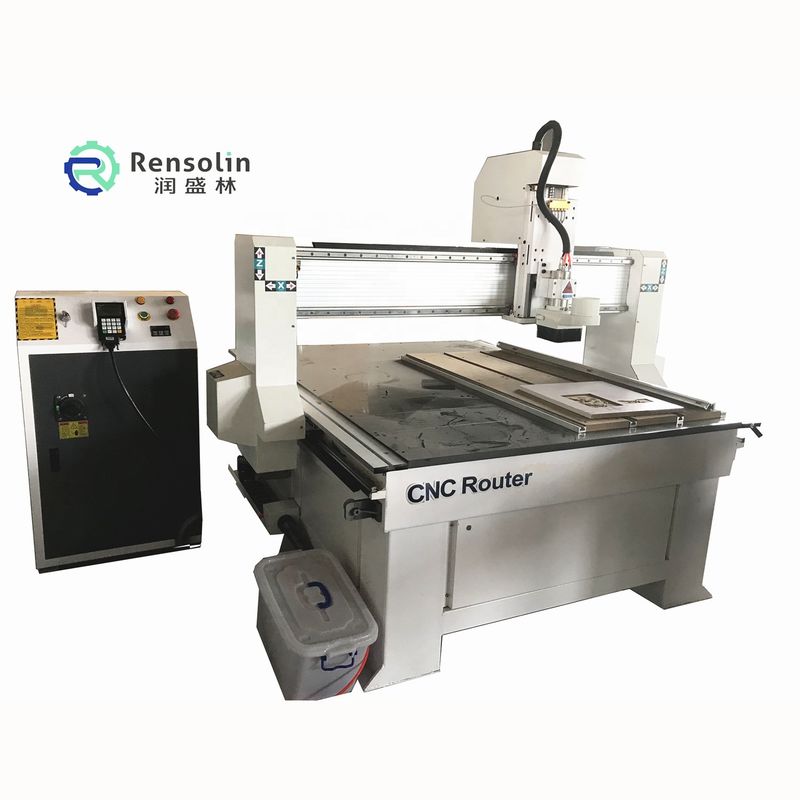

RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm

RSL1313 CNC Router Machine

3D wood carving machine

CNC Engraving Machine 15000rpm

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm

Product Details

Condition:

New

Range Of Spindle Speed(r.p.m):

15000 - 25000 Rpm

Positioning Accuracy (mm):

0.02 Mm

Number Of Axes:

Optional

No. Of Spindles:

Optional

Working Table Size(mm):

1300*1300*200mm

Machine Type:

CNC Router

Travel (X Axis)(mm):

1300 Mm

Travel (Y Axis)(mm):

1300 Mm

Repeatability (X/Y/Z) (mm):

200 Mm

Spindle Motor Power(kW):

3kw

CNC Or Not:

CNC

Voltage:

220v/380v/415v

Weight (KG):

1000

Control System Brand:

DSP

Warranty:

2 Years

Key Selling Points:

Multifunctional

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Energy & Mining, Wood Curving Furniture Door

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

2 Years

Core Components:

Motor

Model:

UNICORN-RSL1313

XY Movement:

Rack And Pinion,gear Drive/Taiwan

Z Movement:

German Ballscrew

Guide:

Taiwan Linear 20 Square

XYZ Working Area:

1300*1300*200mm

Max.Cutting Speed:

25000mm/min

Max.Speed:

35000mm/min

Spindle:

3kw Water Cooling Spindle (option: 4.5kw Air Cooled Spindle)

Work Table:

T-slot Vacuum Table With 7.5kw Pump

Inverter:

Fuling

Port:

Qingdao,China

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$3,000.00 - $7,000.00/sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

2500mm Y Axis Travel CNC Router Machine Cnc Wood Router Carving Cutting

Get Best Price

RSL1313 CNC Router Machine 3D Wood Carving CNC Engraving Machine 15000rpm

Get Best Price

Contact Now

Product Description

Taiwan Linear 20 Square Guide RSL1313 Multi 3D Wood Carving CNC Engraving Machine

Products Description

Product Paramenters

Name	CNC Router Machine RSL1313
XYZ Working area	*13001300200mm*
Exercise system X axis/Y axis	Helical rack +20 square rail
Exercise system Z axis	R2510 ball screw +20 square rail
Drive System XYZ axis	Leisai HBS758S servo drive motor
Control System Interface	DSPA11
Software	JD Paint
Engraving instruction	*G-Code/HPGL-3Dnc**
Spindle Power	3kw water cooling spindle
Lubrication system Thin oil lubrication pump	Hand pressure pump

Here are its features:

1.The overall steel structure of the bed provides high stability.

2.Excellent components:

linear guides made in Taiwan; double-row four-row ball sliders, large bearing capacity, stable operation; German-made ball screws, accurate cutting

3.Reasonable design:
adopts advanced Y-axis double rack transmission, with fast speed and large power.

4.Worry-free performance:

It has functions such as continuous breakpoint carving, power failure recovery, and processing time prediction. It is a truly user-friendly design.
5.Software compatibility:

Open software interface, compatible with processing codes generated by various CAD/CAM design software such as type3/artcam/castmate/Wentai, to ensure the design is barrier-free.

SERVICE

PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north of China.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
