9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm

9kw cnc edge banding machine

cnc edge banding machine 80mm

edge lipping machine 80mm

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

9kw CNC Edge Banding Machine Wood Panels Gluing Edge Lipping Machine 80mm

Product Details

Condition:

New

Type:

Edge Banding Machine

Voltage:

220v/380v/415v, 220v/380v/415v

Dimension(L*W*H):

4100*750*1600mm

Power (kW):

9kw

Weight (KG):

1400 Kg

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C

Warranty:

2 Years

Function:

Gluing

Key Selling Points:

High-accuracy

Panel Feed Speed(m/min):

20m/min

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

2 Years

Core Components:

Motor, PLC

Usage:

Wood Based Panels Machinery Edge Sealing

Name:

Edge Banding Machine

Panel Thickness:

10-60mm

Edge Banding Tape Thickness:

0.4-3mm

Motor Powder:

9kw

Feed Speed:

12-20m/min

Panel Width:

>=80mm

Working Air Pressure:

0.6-0.8Mpa

Overall Size:

4100*750*1600mm

Weight:

1400kg

Port:

Qingdao Port,china

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$1,500.00 - $5,500.00/sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

50mm Melamine Edge Banding Machine Trimming Auto Abs Edge Banding Machine

Get Best Price

Video

Furniture Manufacturing Edging Banding Furniture Making Machine 220V 380V

Get Best Price

Video

Wood Cabinet Edge Banding Machinery Furniture Edge Banding Machine Kitchen Edge Bander

Get Best Price

Automatic Mdf Kdt Edge Banding Edgebander Machine China Edge Bander for Edging Woodworking

Get Best Price

Contact Now

Product Description

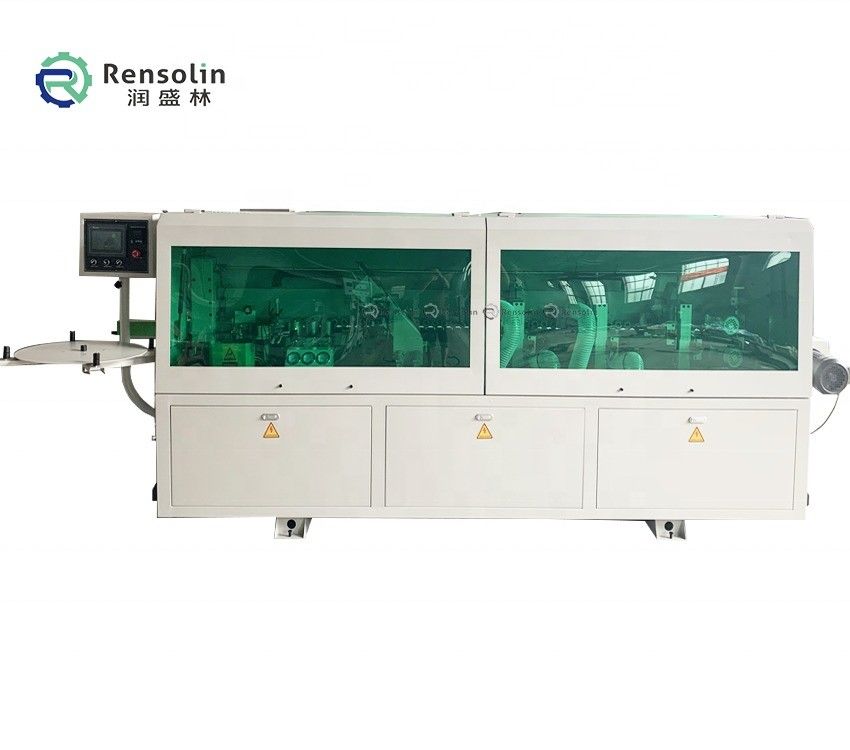

Automatic Edge Banding Machine for Wood Based Panels Gluing Function Panel Width 80mm

Products Description

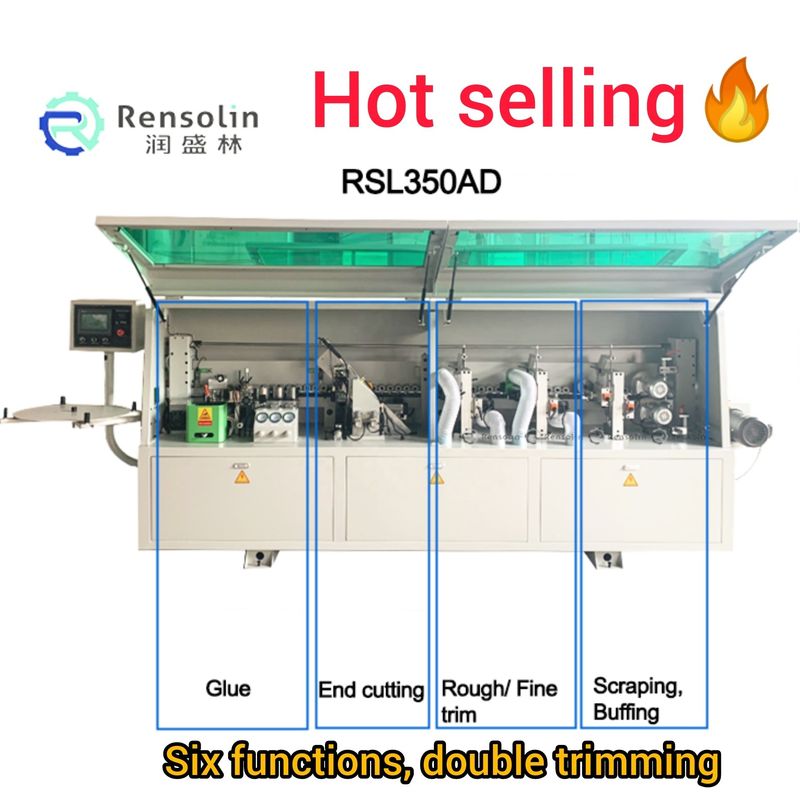

Functions

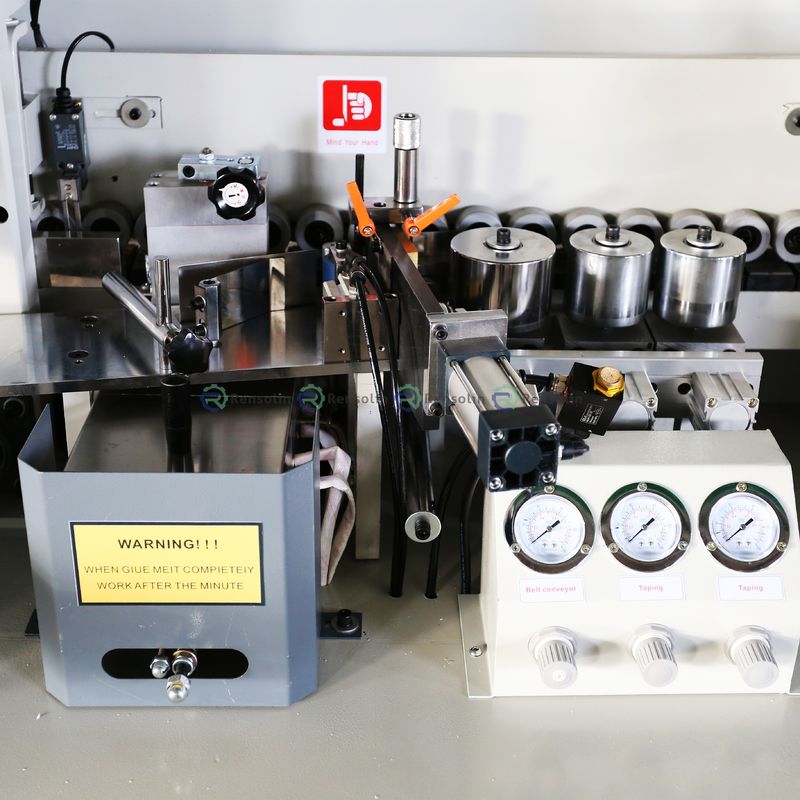

Step 1:Glue and Pressing

The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination

Step2:End Cutting

The end trimming mechanism through a high precision linear guide rail, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly

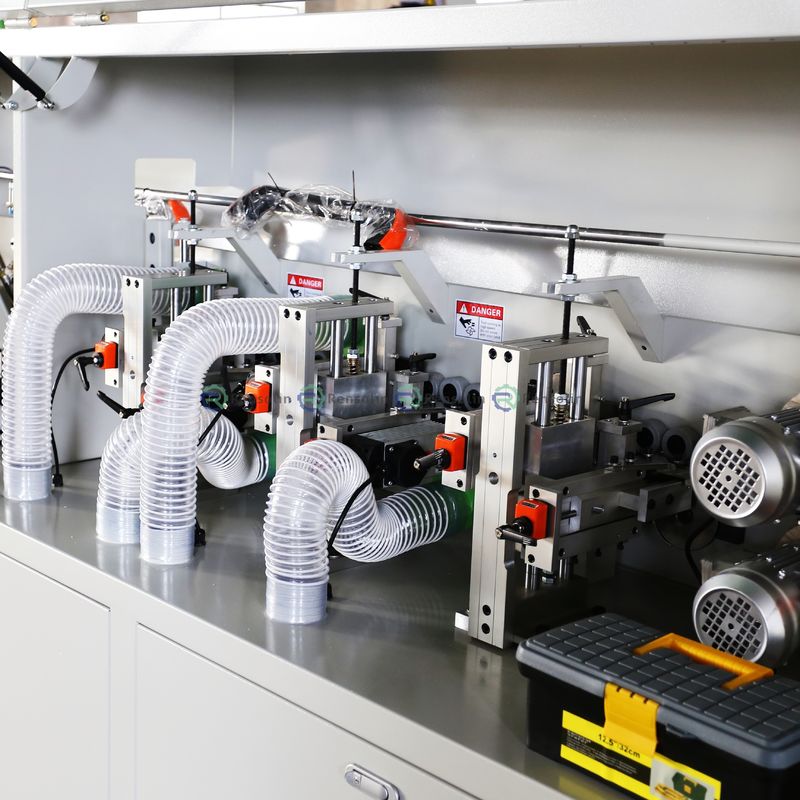

Step3:Rough Trimming

Comes with flat knife which can prevent thin veneer from cracking. This can reduce the cutting forces, wear and tear of fine trimming cutter

Step4:Fine trimming

Used for cutting the excess edge materials,adopt automatic tracking and high-frequency motor fast cutting structure to ensure the trimming plates smoothly

Step5:Scraping

For a perfect finishing of the applied edge

Step6:Buffing

Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface

product advantages

1. Display Screen-DELTA BRAND PLC TOUCH SCREEN SYSTEM

The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three buttons below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop to protect personal safety and stop machine operations in time.

2.CNC Laser cut whole machine body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing thestability of the machine.

3.Electrical part-Safety is important thing for you,for us!

Electrical appliances are very important and are related to the personal safety of workers. We use famous electrical appliances and high-quality electronic parts, and 100% of the electrical appliances have passed the electrical test. We have professional electrical engineers to design the optimal circuit to ensure the safe and reliable long-term operation of the entire line.

1.Electric Wires :Use imported motor and high quality electronic parts, Product seriation, multi-choice for customers.

2.Power off switch and Phase sequence protector:Avoid accidents that may be caused by the reversal of the machine installation,protect the safety of workers, and ensure the service life of the machine.

3.Transformer:Voltage transformation, current transformation, impedance transformation, protect the machine voltage stability.

4.Contactor:Switch on and off the circuit, low voltage release protection.

Company Profile

Our factory have independent research and development team. We are committed to developing the highest performance machines.

All our machines are processed by CNC machining center, and pass; gantry milling west to improve accuracy.

If the surface is not milled through the gantry, it will be rough surface as shown in this picture.

Product Paramenters

Edge Banding Machine	RSL 350AD
Key Word	Edge banding machine
Motor Power	9KW
Overall size	*41007501600*
Feed speed	12-20m/min
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. width of panel	≥80mm
Working air pressure	0.6-0.8 Mpa
Weight	1400KG

Products Effect Display

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.

Service

PRE-SALE SERVICES:

1.Introduce and Provide detailed consultation of the machine.

2. Strict quality control system, warranty period.: 2years

3. Provide custom-made service offening good suggest and design idea to customer.

4. Welcome to visit our factory

SERVICES DURING SALES:

1.Fast delivery and 100% QC Inspection before shipmen
2. Install and debug the machine well in our factory

3. Provide safety package and shipping to clients

AFTER-SALE SERVICES:

1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.

3. Our sales team and senior engineer are ready for service for you .
