Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa

Edge Banding Machine 0.6Mpa

Door Furniture Edge Banding Machine

Automatic Edge Bander 0.8Mpa

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Door Furniture Edge Banding Machine Automatic Edge Bander 0.6Mpa - 0.8Mpa

Product Details

Panel Thickness:

10-60mm

Edge Banding Tape Thickness:

0.4-3mm

Working Air Pressure:

0.6-0.8Mpa

Weight:

1200kg

Payment & Shipping Terms

Minimum Order Quantity

1Set

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

50mm Melamine Edge Banding Machine Trimming Auto Abs Edge Banding Machine

Get Best Price

Video

Furniture Manufacturing Edging Banding Furniture Making Machine 220V 380V

Get Best Price

Video

Wood Cabinet Edge Banding Machinery Furniture Edge Banding Machine Kitchen Edge Bander

Get Best Price

Automatic Mdf Kdt Edge Banding Edgebander Machine China Edge Bander for Edging Woodworking

Get Best Price

Contact Now

Product Description

Door Furniture Full Automatic Edge Bander Working Air Pressure 0.6-0.8Mpa Gluing Function

Products Description

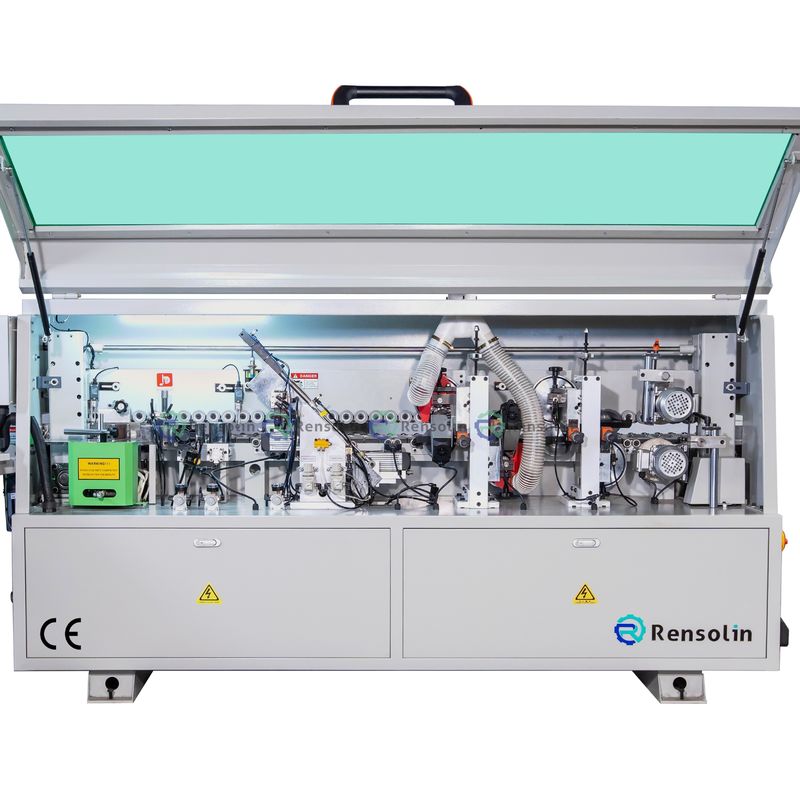

RSL 440S Edge banding Machine

Main Functions

Preheating

The 300W heating plate is assembled at the feeding plate to preheat the plate in advance, which is beneficial to the
bonding of the edge banding belt.

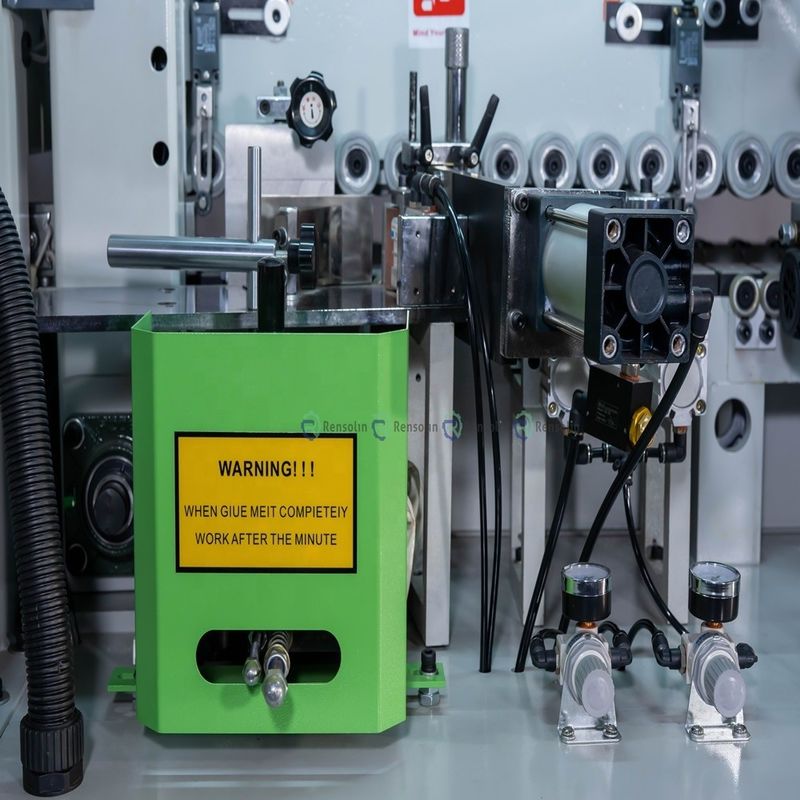

Gluing and Pressing

The glue pot is one-formed with CNC center, never leak glue Five 300W heating rods are equipped with thermocouples to realize cyclic heating.

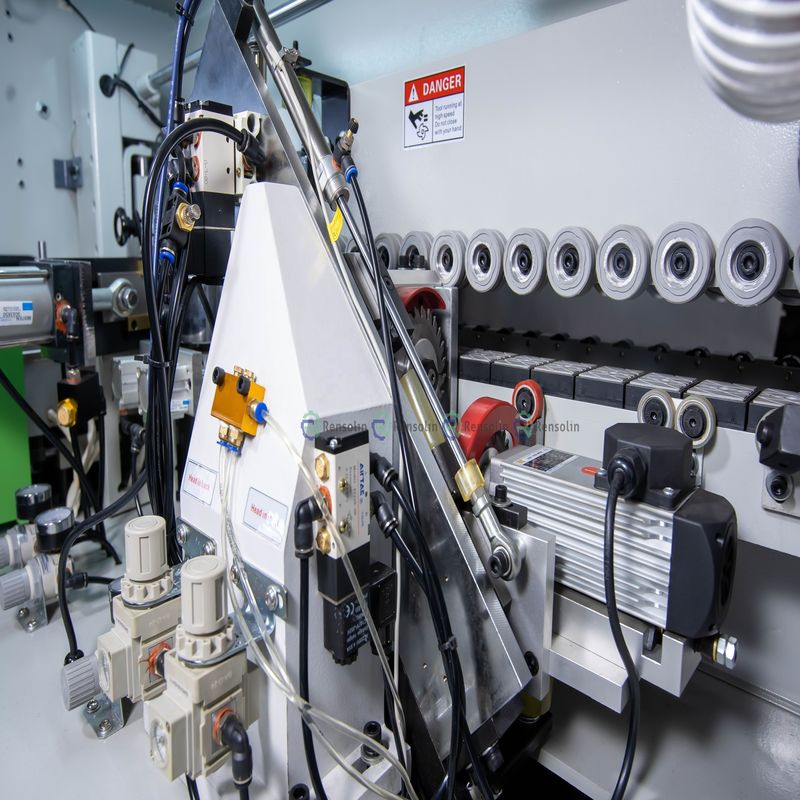

End Cutting

Pure iron base, with Airtec cylinder, solenoid valve,Taiwan linear guide.The special gas circuit principle is adopted to solve the problem of broke hit the head of plate.

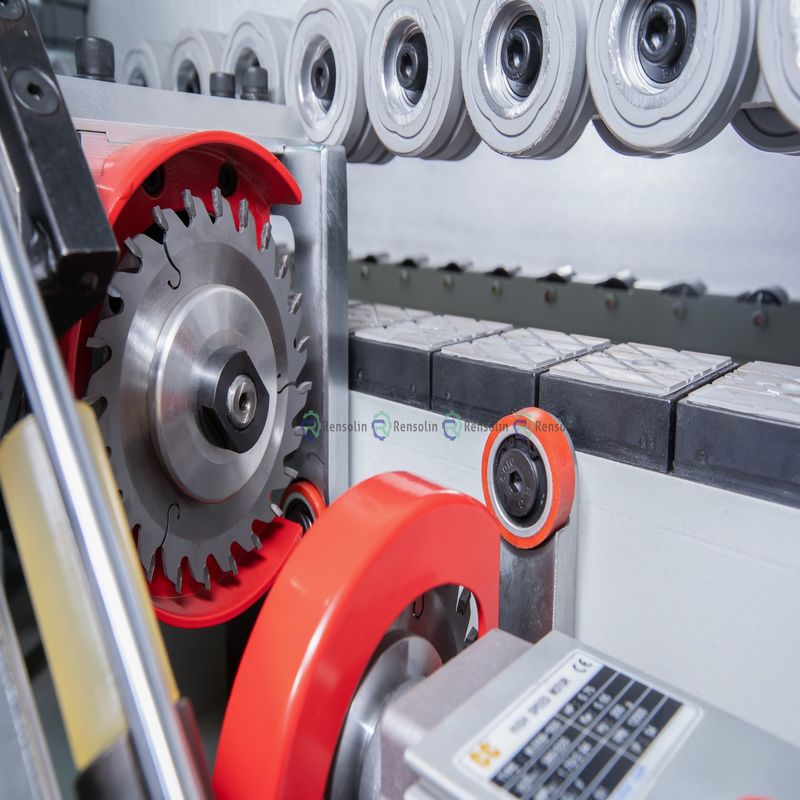

Fine Trimming

The inclined repair design makes the trimming better, and the high-speed motor of Changchuan CC is adopted.

Scraping

The edge scraping function makes the knife grain smoother and the edge sealing effect better.

Polishing

Powerful polishing motor makes the sealing surface smooth

Product Paramenters

Edge Banding Machine	RSL 440s
Motor Power	6.7KW
Overall size	27507501500
Feed speed	12-20m/min
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. length of panel	≥100mm
Min. width of panel	≥50mm
Working air pressure	0.6-0.8 Mpa
Weight	1200KG

product advantages

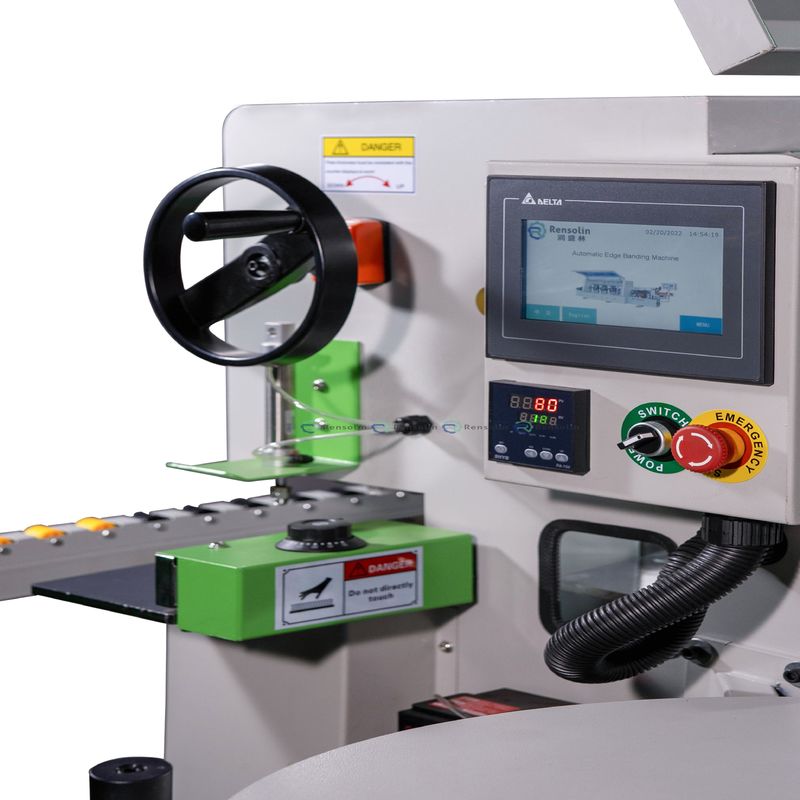

Display Screen

The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three button below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.

Laser cut body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.

Imported motor, multi- choices

Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.

Company Profile

Our factory have independent research and development team. Our machine are more precision.

Machine material are passed Longmen Milling Surface. It is very smooth.

Not passed Longmen Milling Surface. It is like this one.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
