415V Door Edge Banding Machine Horizontal Vertical Slot Edgebanding Trimmer

415V Edge Banding Machine

Door Edge Banding Machine Horizontal

Vertical edgebanding trimmer

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

415V Door Edge Banding Machine Horizontal Vertical Slot Edgebanding Trimmer

Product Details

Condition:

New

Type:

Edge Banding Machine

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert

Usage:

MDF Production

Belt Thickness:

0.4-3mm

Min Length Of Panel:

>=150mm

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$8,000.00/sets >=1 sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

50mm Melamine Edge Banding Machine Trimming Auto Abs Edge Banding Machine

Get Best Price

Video

Furniture Manufacturing Edging Banding Furniture Making Machine 220V 380V

Get Best Price

Video

Wood Cabinet Edge Banding Machinery Furniture Edge Banding Machine Kitchen Edge Bander

Get Best Price

Automatic Mdf Kdt Edge Banding Edgebander Machine China Edge Bander for Edging Woodworking

Get Best Price

Contact Now

Product Description

full automatic edge banding machine

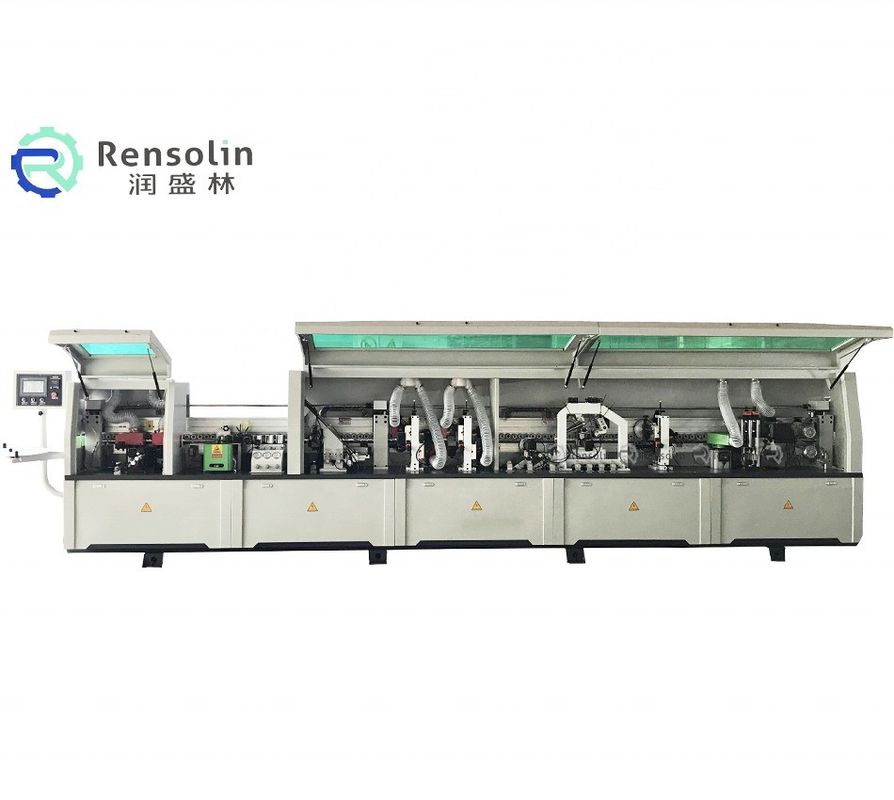

220/380V/415V Cabinet Door Furniture Full Automatic Edge Banding Machine with Horizontal Vertical Slot

Products Description

Main Functions

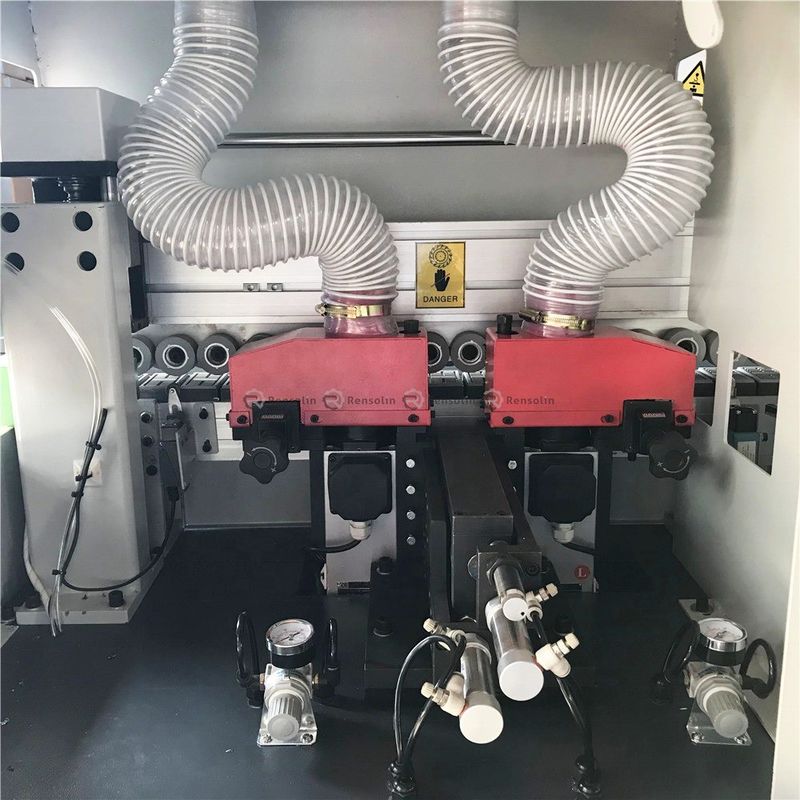

Step1:Pre-milling

modify the ripple marks caused by cutting board saw, and the burr is modified again to achieve better sealing effect.

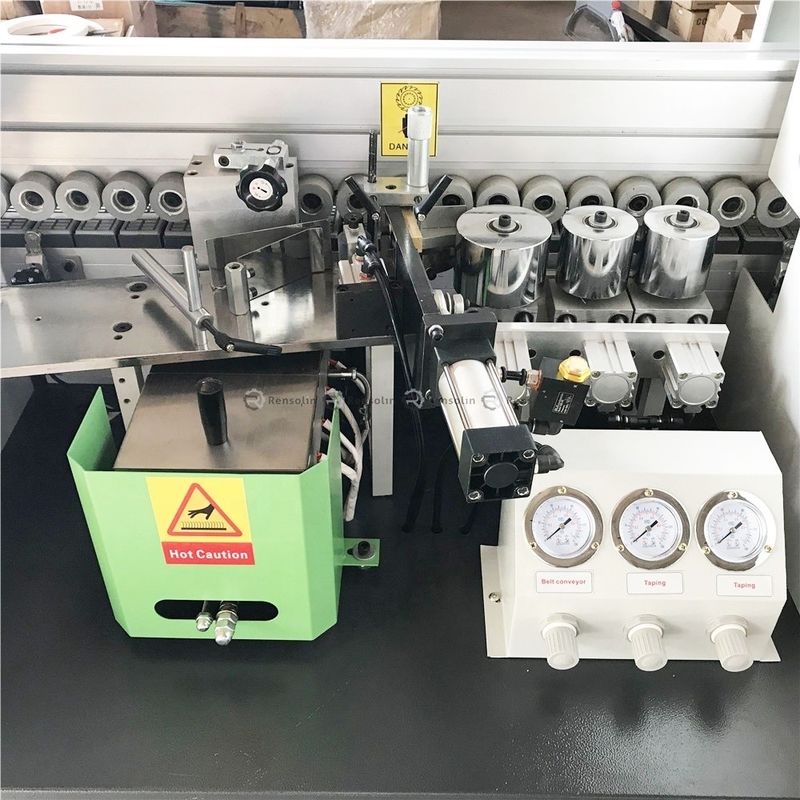

Step2: Glue and Pressing

Using the spiral structure of glue feeding , through the processing center of the one-time forming of the glue pot heating sol,so
that the plate uniformly coated with glue and the adhesive force is more firm.

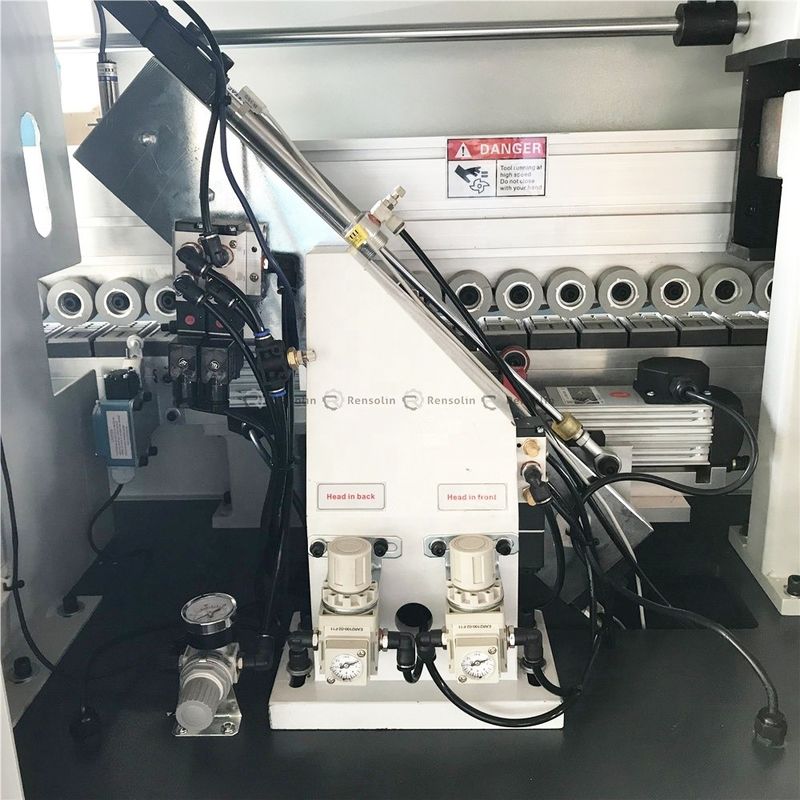

Step3: End Cutting

High matching German technology are adopted, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive.

Step4: Rough Trimming

It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm. If sealing PVC,acrylic and wood veneer, it must be roughened to reduce the cutting force and wear of the finishing tool.

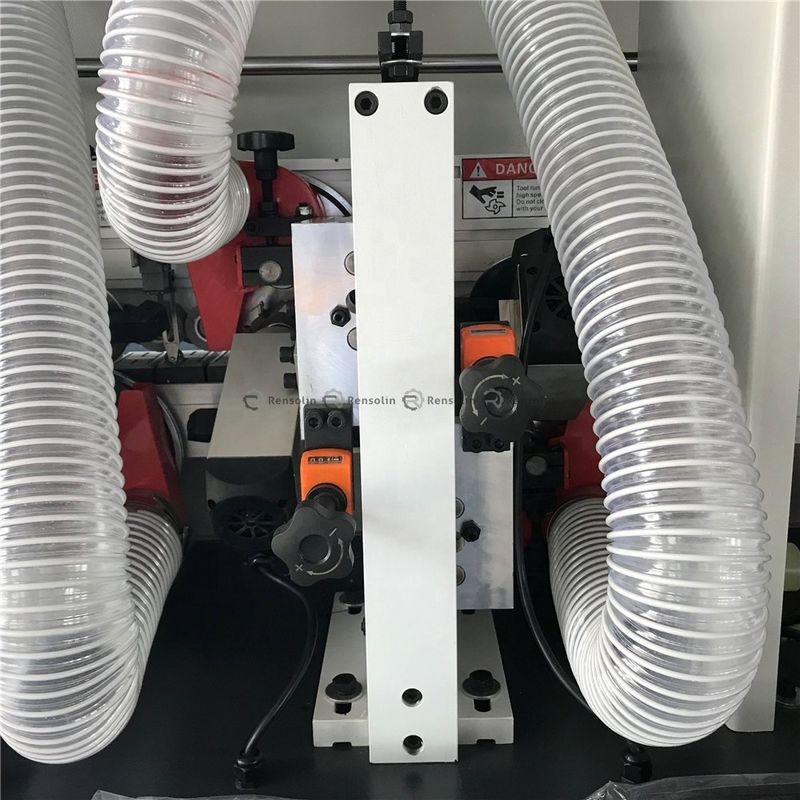

Step5: Fine Trimming

Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip ,will not seal edge strip surface dark mark.

Step6: Corner Rounding

Adopt high speed motor, can make the end face of plate more smooth.

Step7: Scraping

It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more
smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.

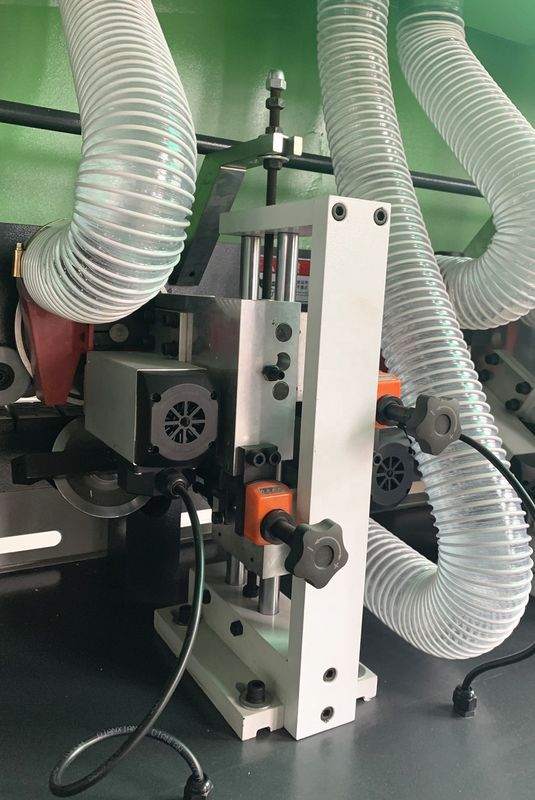

Step8: Slotting

①Vertical Slotting Function lt can be used for grooving the back plate, and it is more convenient to finish the edge sealing and
grooving at onetime.

②Horizontal slotting function Can be used for wardrobe side board, floor and other directslotting, can also be used for door aluminum edge slotting,reduce cutting board saw or end milling machine process.

Step9:Buffing

Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing.

Product Paramenters

Edge Banding Machine	RSL 450ADYFK
Motor Power	25KW
Overall size	70008001650mm
Feed speed	15-23m/min
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. length of panel	≥150mm
Min. width of panel	≥50mm
Working air pressure	0.6-0.8 Mpa
Weight	2500KG

product advantages

Display Screen

The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three button below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.

Laser cut body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.

Imported motor, multi- choices

Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.

Related product

Products Effect Display

Service

PRE-SALE SERVICES:

1. Introduce and Provide detailed consultation of the machine.

2. Strict quality control system, warranty period: 2 years.

3. Provide custom- -made service, offering good suggest and design idea to customer.

4. Welcome to visit our factory.

SERVICES DURING SALES:

1. Fast delivery and 100% QC Inspection before shipment.

2. Install and debug the machine well in our factory.

3. Provide safety package and shipping to clients.

AFTER-SALE SERVICES:

1. Carefully train frst-line operators' operation knowledge.

2. Engineers available to service machinery overseas timely.

3. Our sales team and senior engineer are ready for service for you in every 7x24h.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
