Home > products > Edge Banding Machine >

6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander

6 Functions Edge Banding Machine

Gluing Wood Buffing Machine

Trimming compact edgebander

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

6 Functions Edge Banding Machine Gluing Trimming And Wood Buffing Compact Edgebander

Product Details

Condition:

New

Weight (KG):

1600 Kg

Applicable Industries:

Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Co

Video Outgoing-inspection:

Provided

Product Name:

450AD Edge Banding Machine

Panel Thickness:

10-60mm

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$3,000.00 - $6,000.00/sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

50mm Melamine Edge Banding Machine Trimming Auto Abs Edge Banding Machine

Get Best Price

Video

Furniture Manufacturing Edging Banding Furniture Making Machine 220V 380V

Get Best Price

Video

Wood Cabinet Edge Banding Machinery Furniture Edge Banding Machine Kitchen Edge Bander

Get Best Price

Automatic Mdf Kdt Edge Banding Edgebander Machine China Edge Bander for Edging Woodworking

Get Best Price

Contact Now

Product Description

Advanced 6 Functions Edge Banding Machine with Automatic Gluing Trimming and Buffing

Products Description

RSL 450 Functions

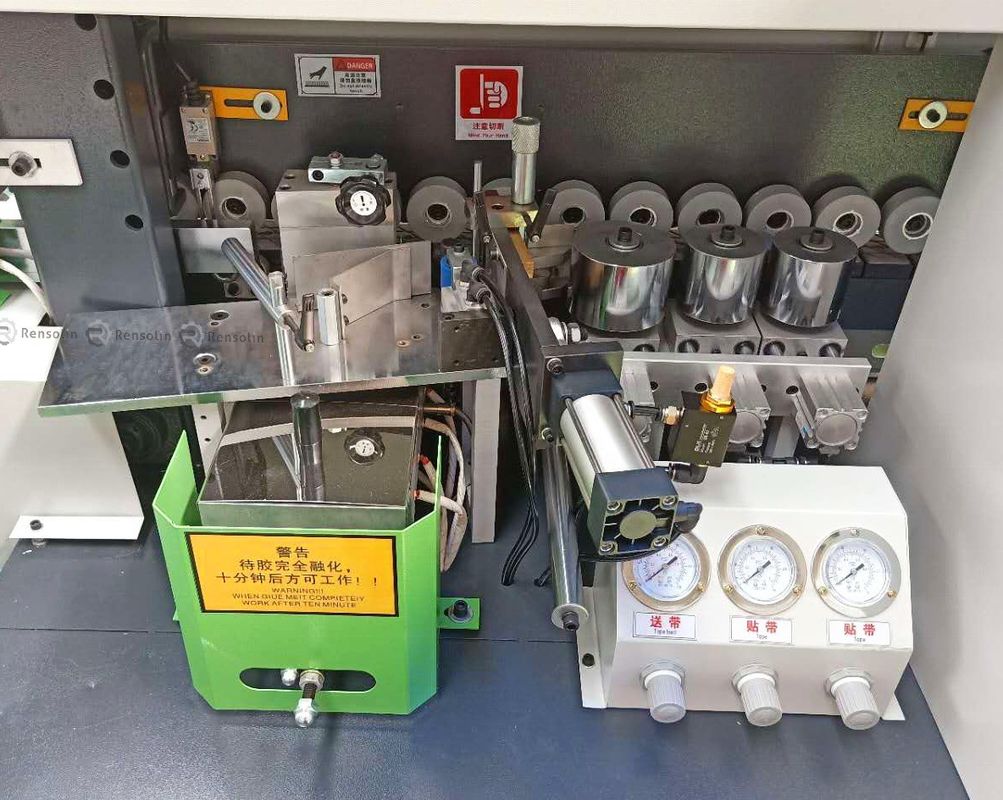

Step1: Glue and Pressing

Using the spiral structure of glue feeding , through the processing center of the one-time forming of the glue pot heating sol,so that the plate uniformly coated with glue and the adhesive force is more firm.

Step2: End Cutting

High matching German technology are adopted, through precise direct selling guide rail movement, adopt automatic tracking by mold and high frequency high click quick cutting structure, ensure smooth cutting surface, quick and light cutting drive.

Step3:Rough Trimming

It is recommended to use the rough repair function when sealing the edge belt with a thickness of more than 1.5mm.

Step4: Fine Trimming

Fine repair is divided into two kinds of flat repair and oblique repair, oblique repair in the sealing surface of high brightness edge strip ,will not seal edge strip surface dark mark.

Step5: Scraping

It is used to eliminate the ripple marks caused by the cutting process of non-linear motion of trimming, make the plate more smooth and neat, and adjust the size of arc Angle at the same time, make the sealing effect more delicate.

Step6: Buffing

Use cotton polishing wheel to clean the finished plate, remove the excess glue, and make the sealing section more smooth by polishing.

Machine Application

ding Machine	RSL450AD
Motor Power	7.8KW
Overall size	42007501600mm
Feed speed	13-20m/min
Panel thickness	10-60mm
Belt thickness	0.4-3mm
Min. length of panel	≥100mm
Min. width of panel	≥50mm
Working air pressure	0.6-0.8 Mpa
Weight	1600KG

product advantages

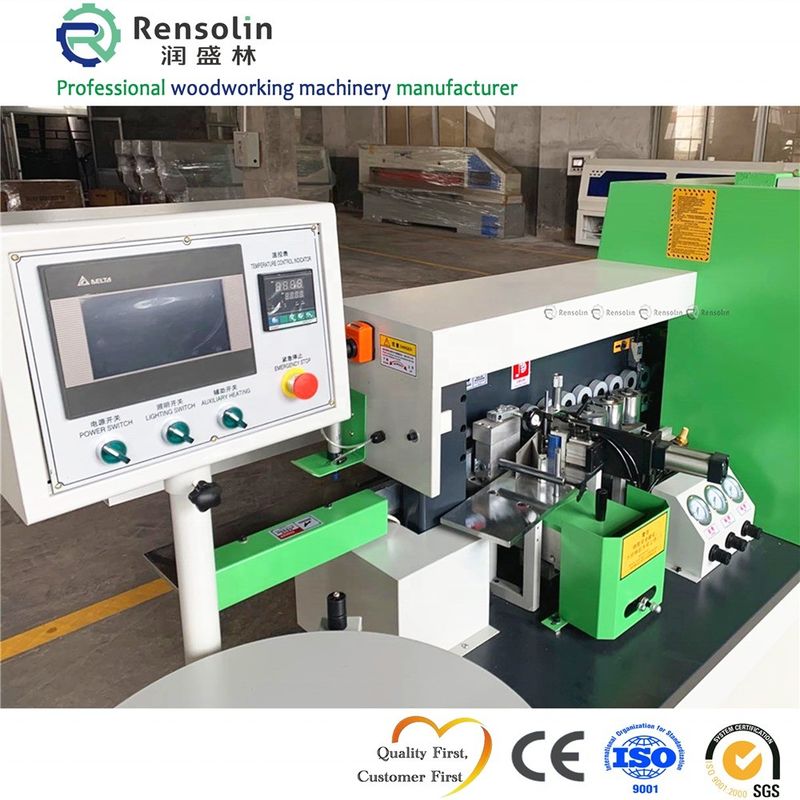

Display Screen

The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three buttons below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.

Laser cut body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.

Imported motor, multi- choices

Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.

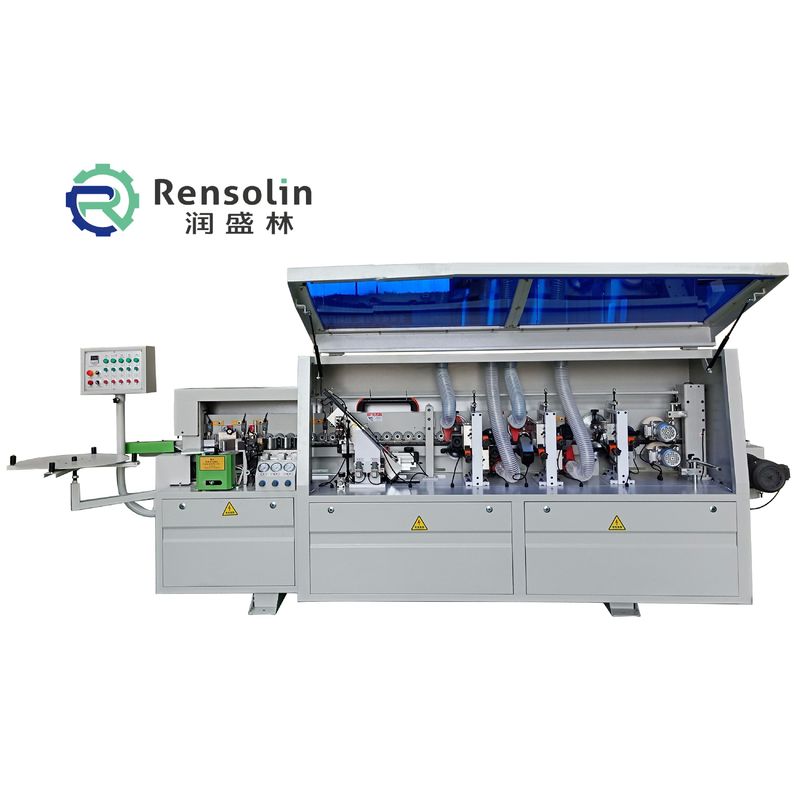

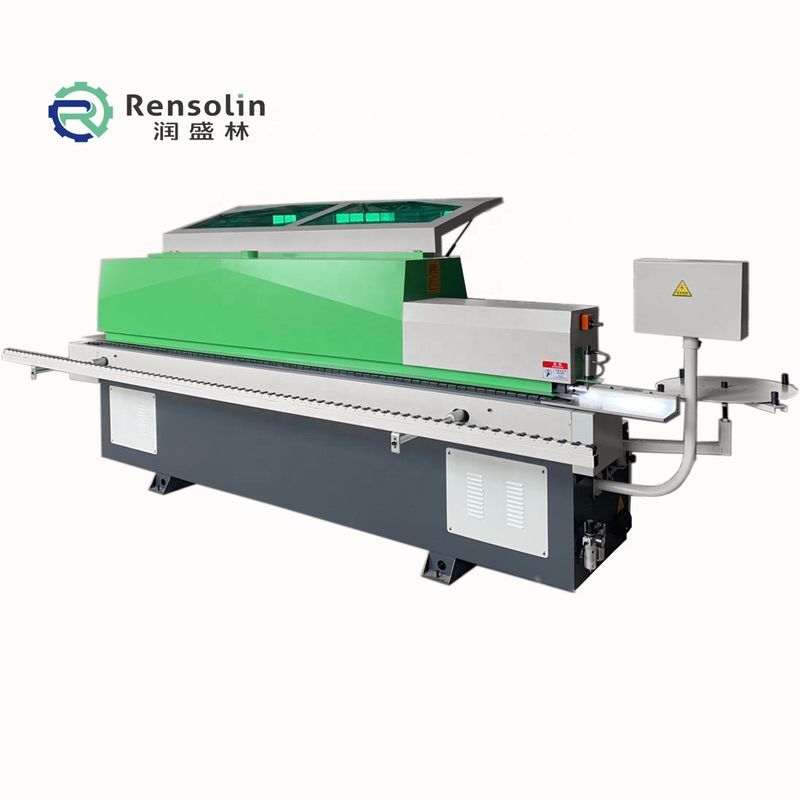

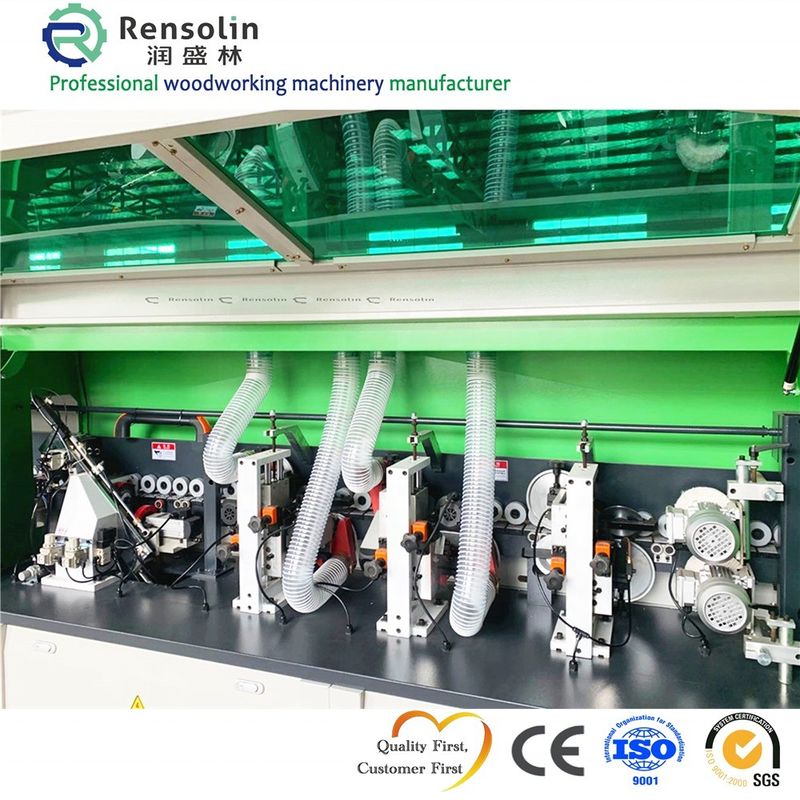

Products Display

Service

PRE-SALE SERVICES:

1.Introduce and Provide detailed consultation of the machine.
2. Strict quality control system, warranty period.: 2years
3. Provide custom-made service offening good suggest and design idea to customer.
4. Welcome to visit our factory.
SERVICES DURING SALES:
1.Fast delivery and 100% QC Inspection before shipmen.
2. Install and debug the machine well in our factory.
3. Provide safety package and shipping to clients.
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge.
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you .

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.For sliding table saw you just need install sliding table on machine body by 4 bolts

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.

Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.

Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shipping company will call you.

Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north of China.
