Wood Pvc Edge Trimmer Machine 20cm/S Automatic Bander Machine For Curved Edges

Wood pvc edge trimmer machine

automatic bander machine 20cm/s

20cm/s automatic bander machine

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Product Details

Total Power:

5.7kw

Air Pressure:

0.6-0.8mpa

Edge Banding Speed:

0-20cm/s

Weight:

470kg

Overall Size:

1550*1400*1350mm

Edge Band Width:

14-70mm

Payment & Shipping Terms

Minimum Order Quantity

1Set

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

50mm Melamine Edge Banding Machine Trimming Auto Abs Edge Banding Machine

Get Best Price

Video

Furniture Manufacturing Edging Banding Furniture Making Machine 220V 380V

Get Best Price

Video

Wood Cabinet Edge Banding Machinery Furniture Edge Banding Machine Kitchen Edge Bander

Get Best Price

Automatic Mdf Kdt Edge Banding Edgebander Machine China Edge Bander for Edging Woodworking

Get Best Price

Contact Now

Product Description

Wood Edge Banding Machine for Curved Edges Automatic Bander

Products Description

Feature

1. Heighten the machine head 7cm sheet
2. Data storage 20 data
3. Brand new cutter, fast and vertical
4. Clean the kit, clean and lubricate
5. Trimming, start and stop, intelligent and safe
6. Follow-up scraping, flat scraping treatment

Product Paramenters

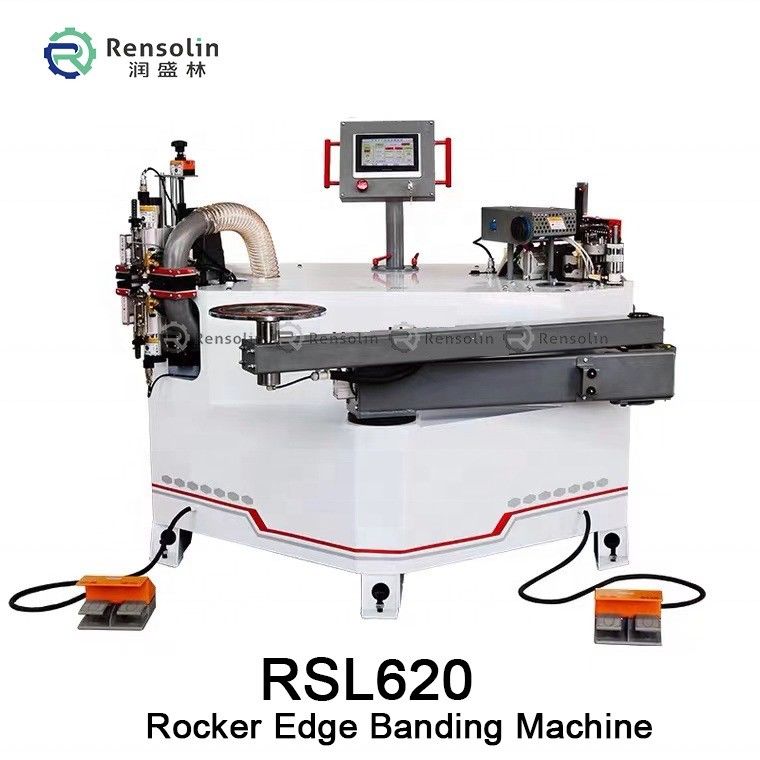

Name:RSL620 Curve Edge Banding Machine
Power supply: 380V/three-phase four-wire (3 live wire + 1 zero wire) 50HZ/60HZ
Total power: 5.7KW			Air pressure: 0.6-0.8Mpa
External suction: suction port p150, flow rate 40-45m/s
Glue pot operating temperature: 110°-210R			Touch screen: IT7000 industrial touch screen
PLC: HIU-XP PLC			Inverter: MD200 2.2KW industrial inverter
Edge banding motor: 220V180W single-phase motor			Trimming profiling motor: 220V 6OW single-phase motor
Trimming speed spindle: three-phase 220V, 400HZ24000r/min			Edge band thickness: usually 0.5-3mm (related to edge band material)
Edge band width: 14-70mm			Edge banding speed: 0-20cm/s
Trimming board thickness: <12mm single-sided trimming, 12-70mm upper and lower double trimming (related to trimming knife)
The minimum radius of the inner arc: usually 20mm (special operation can be sealed with a radius of 3mm)
edge band types: PVC, veneer (need to be customized), plastic, melamine, etc.
Packing size: 155014001350 (length * width * height mm)
