Full Automatic Edge Bander Trimmer Pvc Lipping Wood Banding Machine For Building Material

Full Automatic edge bander trimmer

pvc lipping machine 0.4mm

3mm wood banding machine

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Full Automatic Edge Bander Trimmer Pvc Lipping Wood Banding Machine For Building Material

Product Details

Dimension(L*W*H):

2750*750*1500MM

Weight (KG):

1200 Kg

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works

Edge Banding Tape Thickness:

0.4-3mm

Working Air Pressure:

0.6-0.8Mpa

Port:

Qingdao,China

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$3,000.00 - $4,900.00/sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

50mm Melamine Edge Banding Machine Trimming Auto Abs Edge Banding Machine

Get Best Price

Video

Furniture Manufacturing Edging Banding Furniture Making Machine 220V 380V

Get Best Price

Video

Wood Cabinet Edge Banding Machinery Furniture Edge Banding Machine Kitchen Edge Bander

Get Best Price

Automatic Mdf Kdt Edge Banding Edgebander Machine China Edge Bander for Edging Woodworking

Get Best Price

Contact Now

Product Description

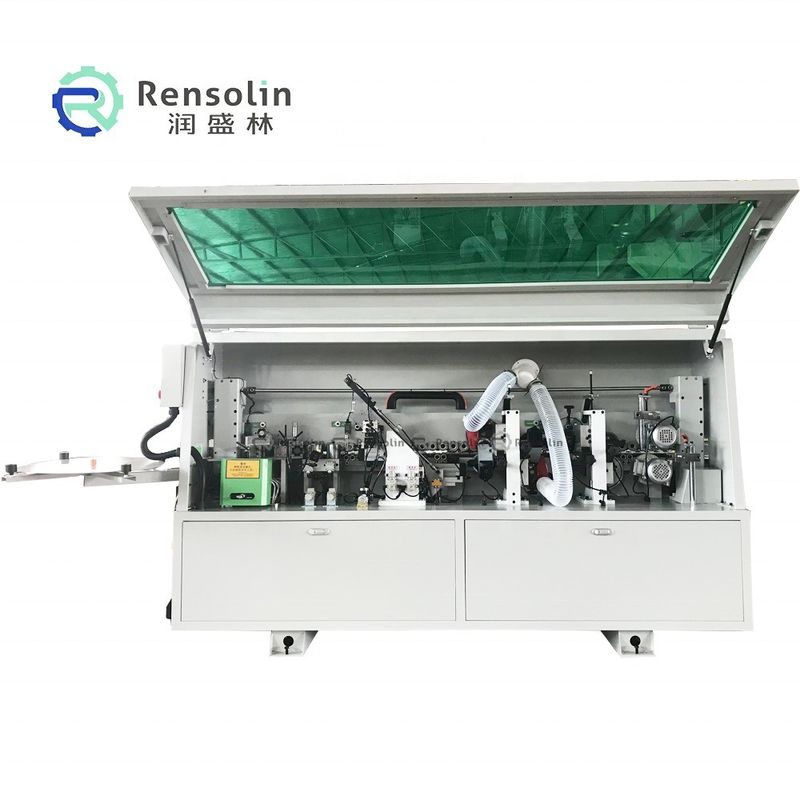

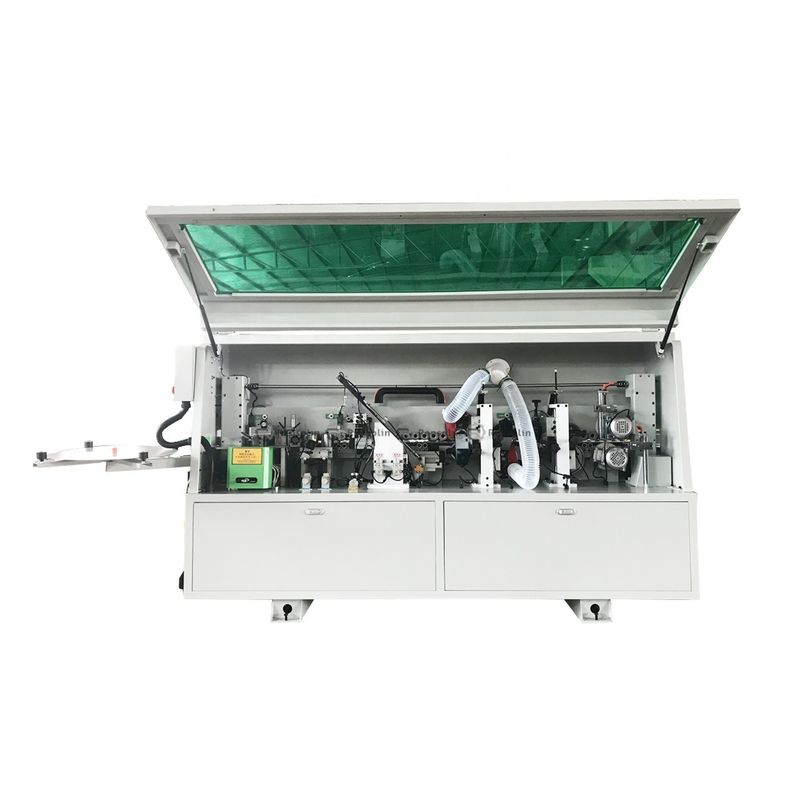

Rensolin 440S Full Automatic Edge Bander for Building Material Shops Easy to Operate

Products Description

New Style RSL440S model Full-Auto Edge Banding Machine
1.Small size, big intelligence, Save you space and reduce costs.
2.We work hard to innovate, hope to better suit your require

3 Narrow plate is difficult to seal? No, it's easier!50mm narrow width plate picture

Main Functions

Preheating

The 300W heating plate is assembled at the feeding plate to preheat the plate in advance, which is beneficial to the bonding of the edge banding belt.

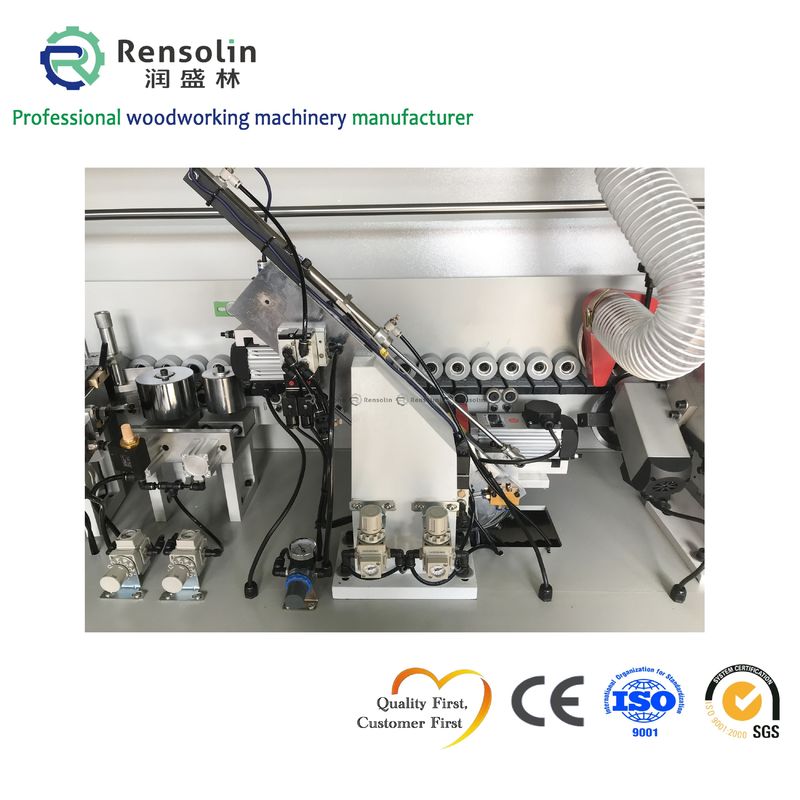

Gluing and Pressing

The glue pot is one-formed with CNC center,never leak glue Five 300W heating rods are equipped with thermocouples to realize cyclic heating.

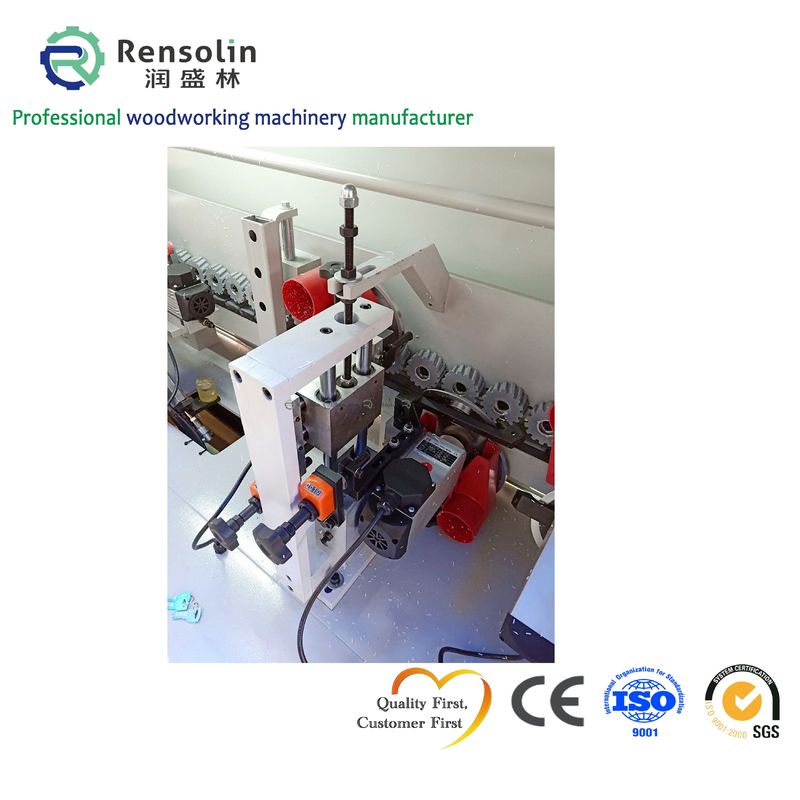

End Cutting

Pure iron base, with Airtec cylinder, solenoid
valve,Taiwan linear guide.The special gas circuit principle is adopted to solve the problem of broke hit the head of plate.

Fine Trimming

Powerful polishing motor makes the sealing surface smooth.

Scraping

The edge scraping function makes the knife grain smoother and the edge sealing effect
better.

Buffing

Adopt the board processed by two cotton polishing wheel, by end-polishing to make the edge side even more smoother surface.

Product Paramenters

Type	Edge Banding Machine	RSL450ADY
Brand Name	RENSOLIN	9-60mm
Voltage	220V/380V/415V	0.4-3mm
Certification	CE/ISO	>=50mm
Warranty	2 years	>=100mm
Motor Power	6.7kw	15-65mm
Overall size	27507501500mm	13-18meters/min
Feed speed	12-20m/min	0.6-0.8Mpa
Panel thickness	10-60mm	380V/220v/415v
Edge banding tape thickness	0.4-3mm	1850KG
Panel width	>=50mm	52007501600mm
working air pressure	0.6-0.8Mpa
Weight	1200KG

product advantages

Display Screen

The electronic screen displays the temperature control meter, and the numbers are displayed more clearly. There are three button below, namely the power switch, the lighting switch, and the auxiliary switch. The right side is equipped with an emergency stop
to protect personal safety and stop machine operations in time.

Laser cut body

Laser cutting steel plate base Laser cutting steel plate base, making the welded body strong and not deformed, increasing the stability of the machine.

Imported motor, multi- choices

Use imported motor and high quality electronic parts.Product seriation, multi-choice for customers.

Service

PRE-SALE SERVICES:

1. Introduce and Provide detailed consultation of the machine.

2. Strict quality control system, warrantyperiod: 2 years.

3. Provide custom- -made service, offering good suggest and design idea to customer.

4. Welcome to visit our factory.

SERVICES DURING SALES:

1. Fast delivery and 100% QC Inspection before shipment.

2. Install and debug the machine well in our factory.

3. Provide safety package and shipping to clients.

AFTER-SALE SERVICES:

1. Carefully train frst-line operators' operation knowledge.

2. Engineers available to service machinery overseas timely.

3. Our sales team and senior engineer are ready for service for you in every 7x24h.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
