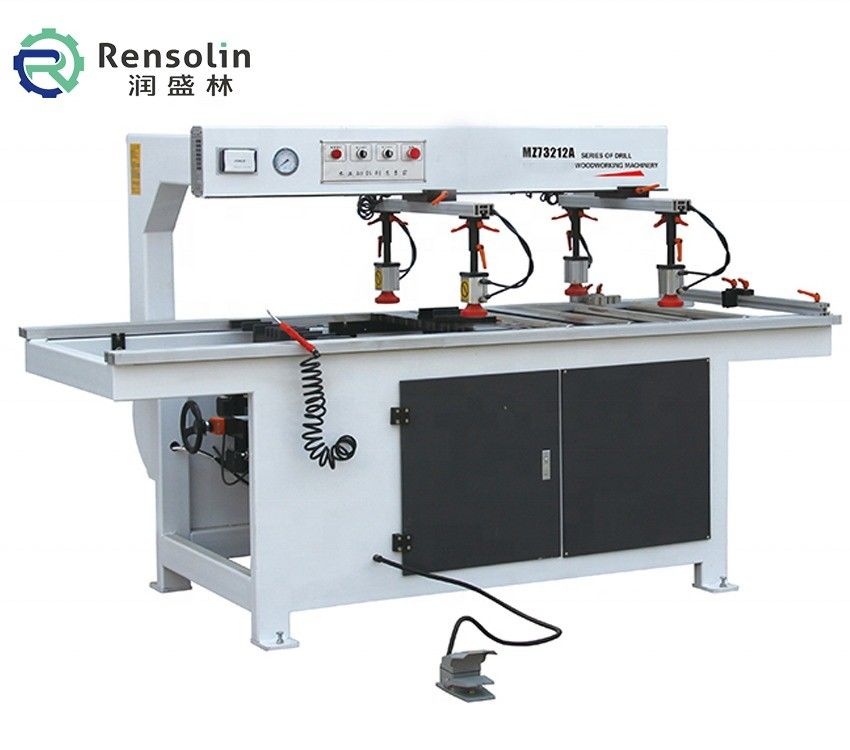

Horizontal Drill Hole Boring Machine Double Row For Wood 1.5kw X 2 Multiple Hole Drilling

Horizontal hole boring machine

hole boring machine Double Row

1.5kw multiple hole drilling machine

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Horizontal Drill Hole Boring Machine Double Row For Wood 1.5kw X 2 Multiple Hole Drilling

Product Details

Total Powder Of Motot:

1.5kw*2

Compressed Air Pressure:

0.6-0.8Mpa

Total Number Of Drilling Shafts:

21*2 Range

Spindle Speed:

2840rmp

Net Weight:

1500kg

Port:

Qingdao Port,china

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$3,000.00/sets >=1 sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

0 - 320mm Manual Wood Drilling Machine 2600/Min Rotating Speed

Get Best Price

Double Row Wood Boring Machine Multi Axis Horizontal Boring Machine Wood 21 X 2mm

Get Best Price

Small Portable Hinge Wood Boring Machine For Door Lock Hole 0 - 40mm

Get Best Price

DT PVC Wood Line Boring Machine Melamine Board Edge Banding Machine

Get Best Price

Contact Now

Product Description

Best Horizontal Double Row Drill Boring Machine for Wood Total Powder of Motot 1.5kw*2

Product Description

Thickened body, Taiwan brand drill row, high-quality large scale, standard oiler, bearing
structure, PIC industrial control system, copper wire motor, convenient operation by workers

Applicable products:drilling of panel furniture such as solid woodboard, fibreboard,particleboard,medium density board and other wood-based panels.

Achieve results:drilling range,drilling depth,distance positioning fast and accurate.equipped with size digital calculator to improve work efficiency.

Structural advantages : The fuselage with double support,big beam design enhance the stability of the machine.Body parts made of hlgh quality steel, high temperature annealing ( eliminate stress ) treatment will never be deformed.lmported original brand of electrical components. Touch screen control system,equipment operation is simple,stable, powerful, low failure rate.

Features:
1. All the drills adopt quick connector, convenient and efficient
2.Drilling depth and distance controlled by photoelectric switch,

3. Imported drill holding parts,linear guide, more durable
4.Casting iron components are processed by high temperature treatment and are in stock for half a year, that will avoid the transformation.
5. Digital counter improve work efficiency

Product Paramenters

Model					MZ73212A
Max Drilling Diameter					35mm
Max Drilling Depth					60mm
Max processing pitch					1620*640mm
Minimum processing pitch					120*32mm
Total powder of motor					1.5kw*2
Compressed air pressure					0.6-0.8Mpa
Total number of drilling shafts					21*2 range
Spindle speed					2840rmp
Voltage					220v/380v
Net weight					1500kg
Height of working platfrom off ground					900mm
Packing Size					240012001400mm

Company Profile

Our factory have independent research and development team. Our machine are more precision.

Machine material are passed Longmen Milling Surface. It is very smooth.

Not passed Longmen Milling Surface. It is like this one.
