R45 Sliding Table Precision Panel Saw Wood Panel Melamine Mdf Board Cutting

R45 Precision Panel Saw

1250mm Precision Panel Saw

1250mm mdf board cutting machine

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Product Details

Condition:

New

Type:

Panel Saw

Use:

Cutting Board

Style:

Horizontal

Usage:

Cutting Board

Voltage:

220/380/415

Dimension(L*W*H):

3200*3300*900

Warranty:

2 Years

Weight (KG):

950 KG

Power (kW):

5.5+1.1kw

Key Selling Points:

High-accuracy

Max.Cutting Height At 90°(mm):

70mm

Max.Cutting Height At 45°(mm):

60mm

Max. Length Of Workpiece (mm):

3200mm

Applicable Industries:

Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Other

Marketing Type:

Hot Product

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

2 Years

Core Components:

Motor

Name:

Panel Saw

The Biggest Cutting Width:

1250mm

Height Of Cut(300mm):

70mm

Max Cutting Thickness Of 45degree:

60mm

Speed Of Main Saw Spindle:

6000r/min

Titing Saw Blade:

0-45degree

The Motor Power:

5.5+1.1kw

Scoring Spindle Diameter:

20mm

Overall Dimensions:

3250*3350*900

Gross Weight:

950kg

Port:

Qingdao,China

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$2,999.00/sets >=1 sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

3000mm Wood Cnc Panel Saw Machine 20mm Dia Sliding Table Saw Machine

Get Best Price

Video

Sliding Table Precision Panel Saw 220V Melamine Board Wood Cutting Machine

Get Best Price

Video

1250mm Precision Panel Beam Saw Cnc Table Sliding Panel Saw Fast Cutting

Get Best Price

Video

3200mm X 390mm Precision Panel Saw Sliding Table Wood Cutting Machine

Get Best Price

Contact Now

Product Description

High Precision R45 Sliding Table Saw for Wood Panel Cutting and Melamine Board Cuttin

Products Description

Product Paramenters

Name	R45 panel saw
Dioension of sliding table	*3200390mm**
Main spindle diameter	30mm
Maximum sawing length	3200mm
Maximum sawing width	1250mm
The motor power	5.5+1.1kw
Titing saw table	0-45degree
Speed of main saw spindle	6000r/min
Overall dimension	*32503350900mm*
Gross weight	950kg

product advantages

Strong body

1.Use stronger with 6mm thick steel; 2.All the body are cut by laser cutting machine;

3.Smoother without burr, make the machine very stability;

4.Fine appearance, beautiful and wear-resistant;

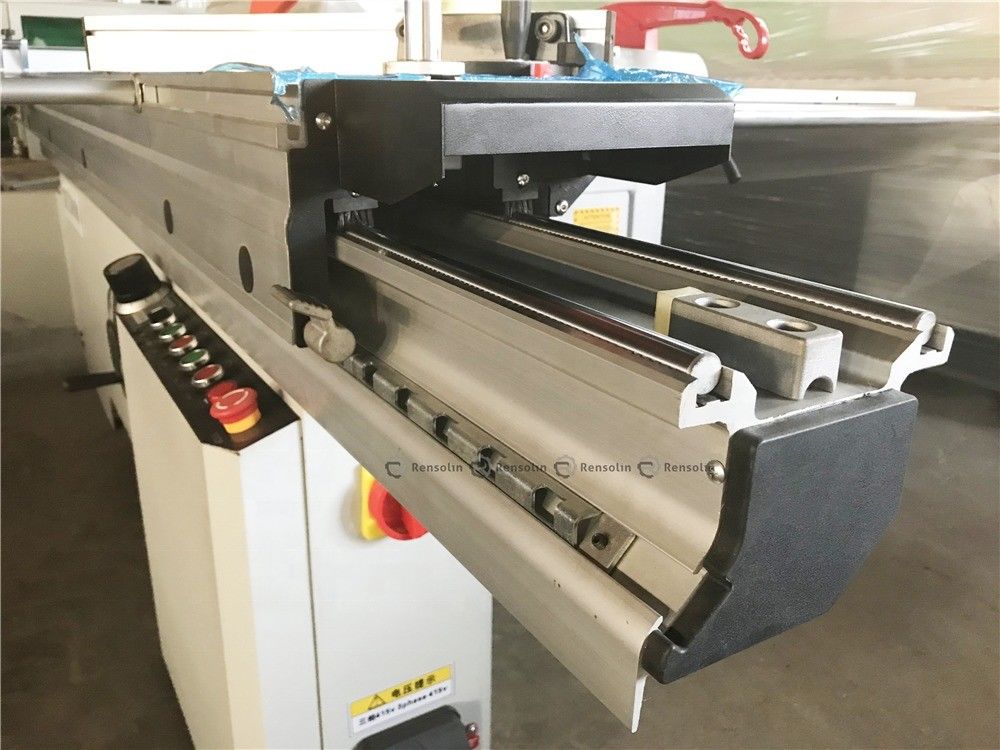

High-quality sliding table

1.use Import Yongli brand sliding table, guarantee high strength, no deformation, long service life; 2.Step-lock device, Firmly
fixed the sliding table; 3.Europe style double table, the double layers sliding table make the machine more stable and durable；

1.9m Large European Ruler

1.9m Large European shelf ruler, Aluminum alloy materials, stable and non displacement, saving time and labor,with clear, accurate data

Fine-tuning Profiling Seat

Bigger and longer Profiling seat, can be finely adjusted, and the size adjustment is more convenient.

Motor:5.5kw+1.1kw

5.5kw+1.1kw aluminum shell copper wire ring motor, high-power motor

DELIXI and CHNT appliance

1.China famous brands DELIXI and CHNT appliance； 2.Add the Power off switch,protect worker's safe； 3.Specially designed thermal

protection function,protect personal safety;

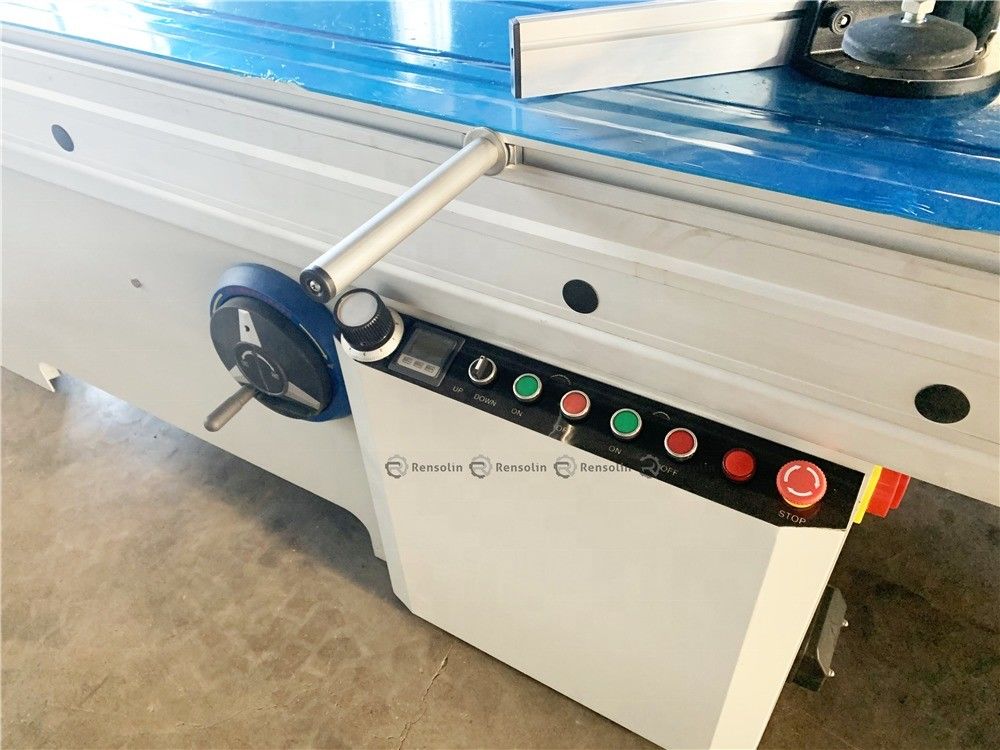

Electric Automatic Model

1.Electric digital display 0-45degree; 2.Electric main saw lifting up and down;

SERVICE

PRE-SALE SERVICES:
1. Introduce and Provide detailed consultation of the machine
2. Strict quality control system, warranty period.:2years
3. Provide custom-made service offering good suggest and design idea to customer
4. Welcome to visit our factory
SERVICES DURING SALES:
1. Fast delivery and 100% QC Inspection before shipment
2. Install and debug the machine well in our factory
3. Provide safety package and shipping to clients
AFTER-SALE SERVICES:
1. Carefully train first-line operators operation knowledge
2. Engineers available to service machinery overseas timely.
3. Our sales team and senior engineer are ready for service for you in every 7*24hours.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north of China.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
