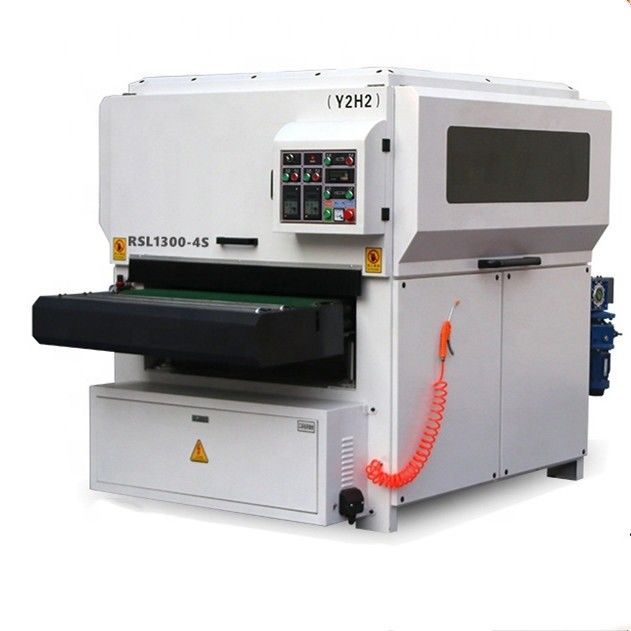

Automatic Wood Polishing Machine Cabinet Door Brush Drum Sander Polisher

Automatic Wood Polishing Machine

Furniture Wood Polishing Machine

1300mm drum sander polisher

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Automatic Wood Polishing Machine Cabinet Door Brush Drum Sander Polisher

Product Details

Machine Type:

Wood Sanding Machine

Maximum Processing Width:

1300mm

Machine Size:

2950*2050*2160mm

Wooden Box Size:

2480*2130*2150mm

Polishing Thickness:

8-160mm

Port:

Qingdao Port,china

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$6,000.00/sets 1-2 sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

1.5kW Wood Polishing Machine Small Manual Polish Sander

Get Best Price

Automatic Wood Polishing Machine Cabinet Door Brush Drum Sander Polisher

Get Best Price

Contact Now

Product Description

Automatic Cabinet Door Brush Drum Polishing Sanding Sander for Furniture Polishing

Product Description

Product Paramenters

Model					RSL1530-4S
Maximum processing width : 1300mm					Polishing thickness: 8-160mm
Processing plate length:>=350mm					Polishing roller speed: variable speed and frequency modulation
Converyor belt speed:5-20m/min					Diameter of polishing roller: 300mm
Total motor capacity:7.75kw					Stright roller motor: 2.2kw*2
Conveying motor:0.75kw					Lifting motor:0.55kw-RV40
Disc motor: 1.5kw six levels					Disc swing motor: 0.55kw
Machine size: 295020502160mm					Net machine weight:1420kg
Wooden box size:248021602150mm

Product Advantages

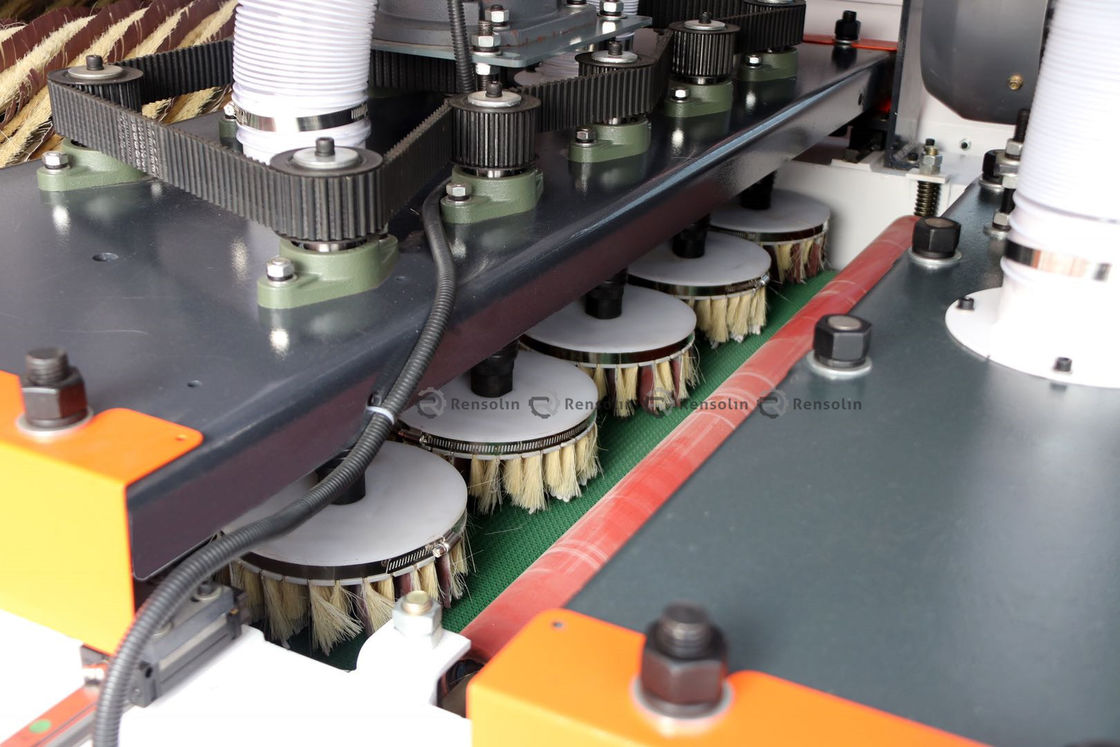

①Swing back and forth
Staggered grinding discs to prevent missed hits
The grinding disc adopts staggered arrangement, reciprocating oscillating grinding, to prevent missed grinding, and manual speed
adjustment is available to improve grinding quality

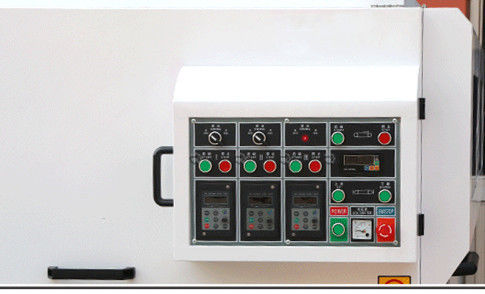

②Control panel
Simple and clear control panel
The panel design is clear and clear, with a rotatable panel design. More convenient operation, saving labor and time, and higher
efficiency

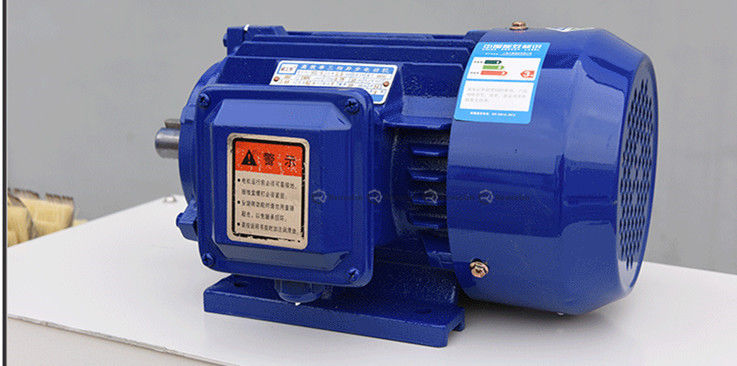

③Motor
Pure copper core national standard motor
Spring copper core, full power, one year warranty! Even in a high temperature environment, it does not affect the work, the speed ratio is large, and the conveying speed can be adjusted at will.

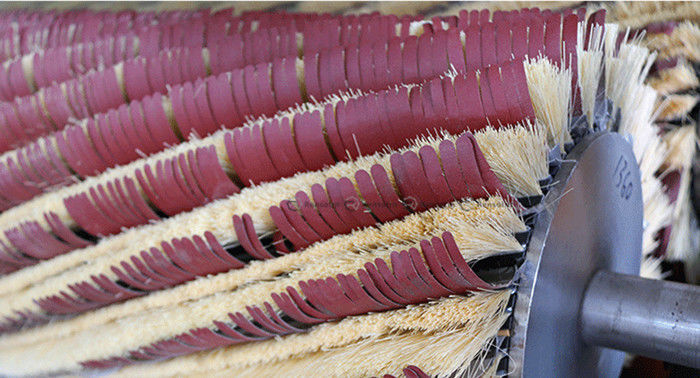

④Customization
The ratio of wool rollers can be customized
According to the different grinding materials, the machine hair roller ratio can be freely customized and matched

⑤ Oil-water separation
Whose separator
The water-oil separator can prevent water from entering the cylinder, effectively filter the water vapor in the air, and extend
the service life of pneumatic components

⑥Laser cutting
Laser cutting
The sheet metal of the machine body is completely cut by laser, which is not only more beautiful, but also has higher accuracy and
better stability.

Processing scene display
