Double Row Wood Boring Machine Multi Axis Horizontal Boring Machine Wood 21 X 2mm

Double Row Wood Boring Machine

2840rpm Wood Boring Machine

2840rpm horizontal boring machine wood

Place of Origin:

China

Brand Name:

Rensolin

Certification:

CE,ISO

Request A Quote

Double Row Wood Boring Machine Multi Axis Horizontal Boring Machine Wood 21 X 2mm

Product Details

Dimension(L*W*H)::

2400*1200*1400mm

Weight:

1500 KG

Max Drilling Diameter::

35mm

Max Processing Pitch::

1620*640mm

Spindle Speed:

2840rpm

Port:

Qingdao,China

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

$1,500.00 - $3,000.00/sets

Packaging Details

Wrapped film or wooden box

Delivery Time

5-7days

Payment Terms

T/T

Supply Ability

300Sets/Month

0 - 320mm Manual Wood Drilling Machine 2600/Min Rotating Speed

Get Best Price

Double Row Wood Boring Machine Multi Axis Horizontal Boring Machine Wood 21 X 2mm

Get Best Price

Small Portable Hinge Wood Boring Machine For Door Lock Hole 0 - 40mm

Get Best Price

DT PVC Wood Line Boring Machine Melamine Board Edge Banding Machine

Get Best Price

Contact Now

Product Description

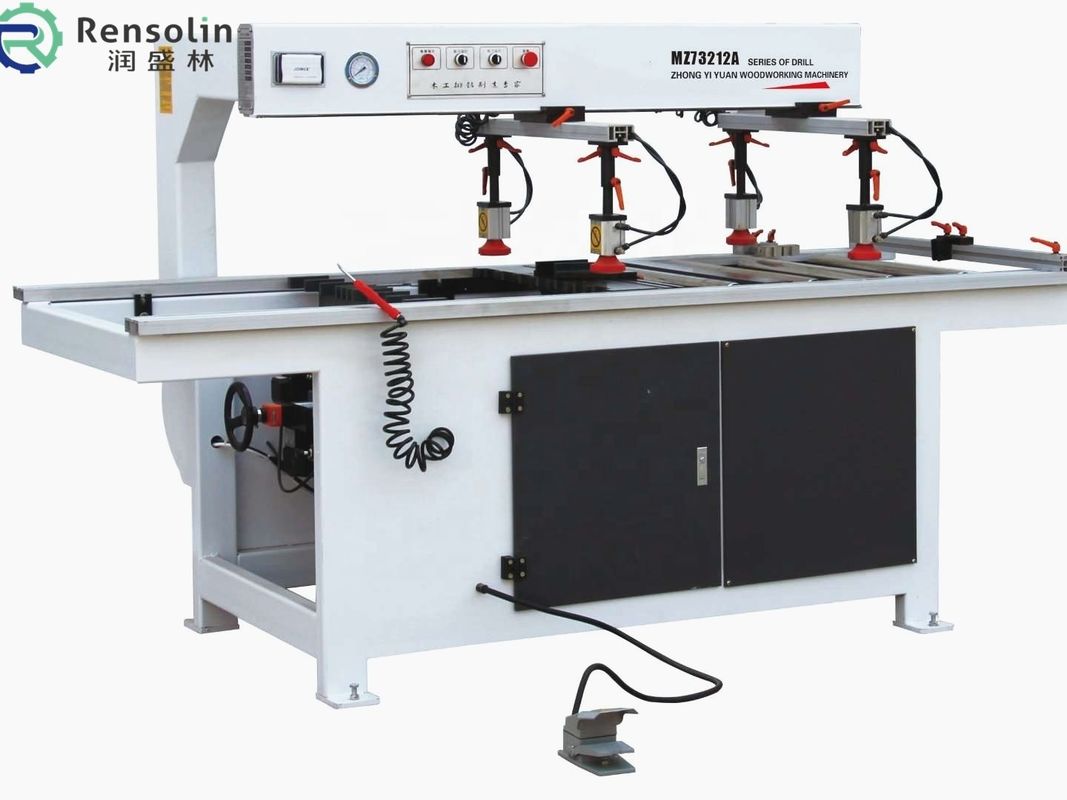

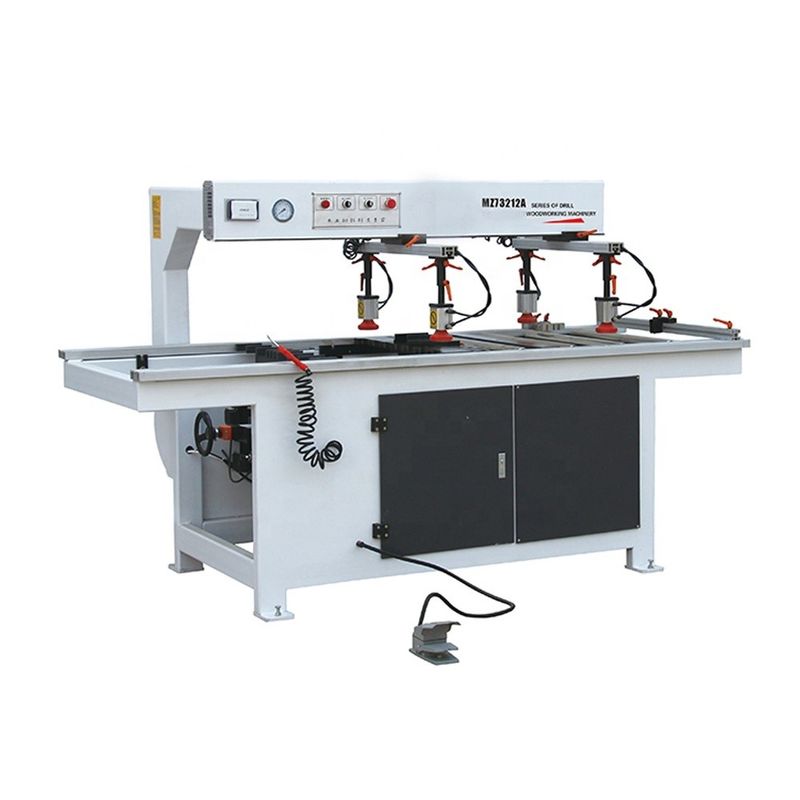

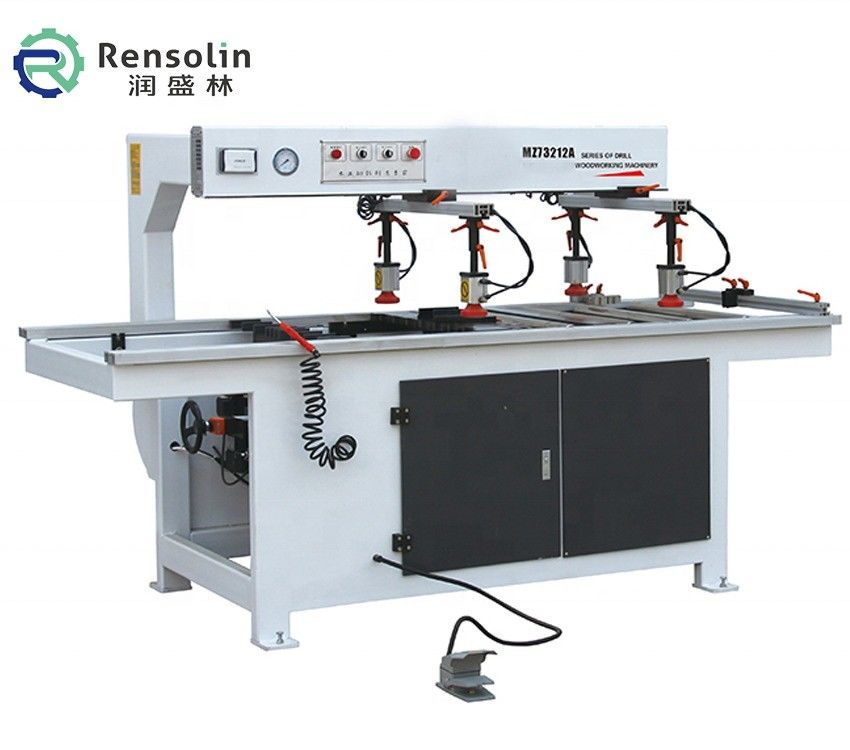

Rensolin MZ73212A Double Row Multi-Axis Woodworking Drilling Machine 21*2 Drilling Shafts Range

Products Description

*Dimension(LWH)*	240012001400mm
Weight (KG)	1500KG
Power (kW)	3KW
Model	MZ73212A
Max Drilling Diameter	35mm
Max Drilling Depth	60mm
Max processing pitch	1620×640mm
Minimum processing pitch	120×32mm
Compressed air pressure	0.6-0.8Mpa
Total number of drilling shafts	21×2 range
Spindle Speed	2840rmp
Height of working platform off ground	900mm

Structural advantages :

1.The fuselage with double support,big beam design enhance the stability of the machine.

2. lmported original brand of electrical components.

Feature

1. All the drills adopt quick connector, convenient and efficient
2.Drilling depth and distance controlled by photoelectric switch,
3. Imported drill holding parts,linear guide, more durable
4.Casting iron components are processed by high temperature treatment and are in stock for half a year, that will avoid the
transformation.
5. Digital counter improve work efficiency

Details display

Drill row display

The equipment adopts imported international standard drill row, the drill row has a large drilling range, and all drill bits use quick connectors, which is convenient

Touch screen operation panel

Touch screen control system,equipment operation is simple,stable, powerful, low failure rate.

Machine tool

Machine tool parts are made of high-quality steel, which will never be deformed after high temperature annealing (elimination of internal stress)

Guide

This machine adopts high-precision double linear guide rails and the guide rail is increased to 2450mm.

Service

PRE-SALE SERVICES:

1. Introduce and Provide detailed consultation of the machine.

2. Strict quality control system, warrantyperiod: 2 years.

3. Provide custom- -made service, offering good suggest and design idea to customer.

4. Welcome to visit our factory.

SERVICES DURING SALES:

1. Fast delivery and 100% QC Inspection before shipment.

2. Install and debug the machine well in our factory.

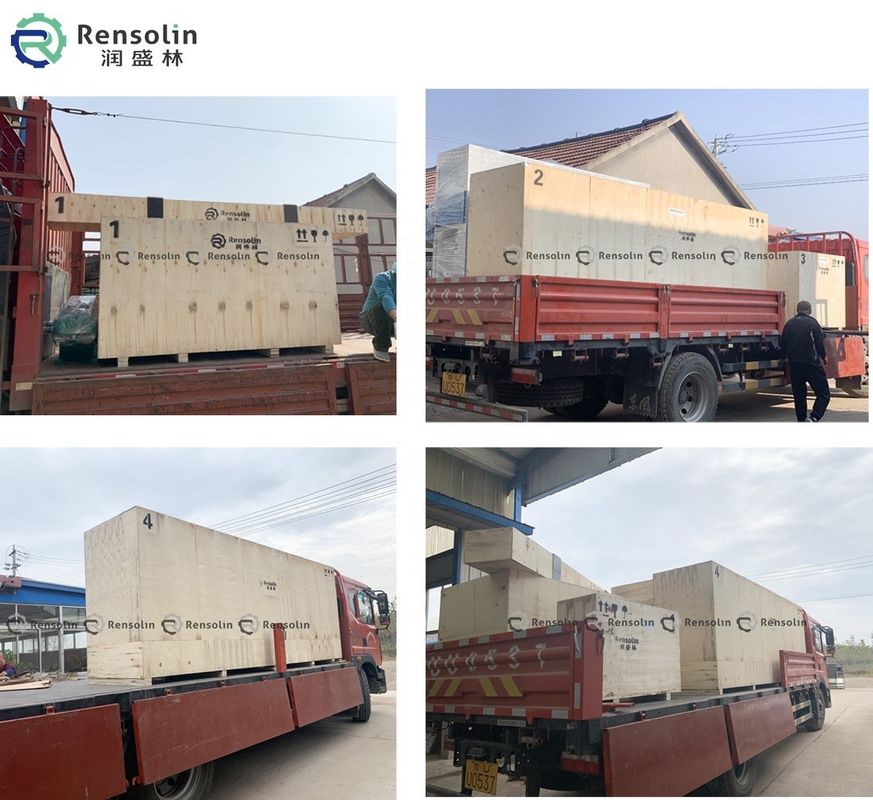

3. Provide safety package and shipping to clients.

AFTER-SALE SERVICES:

1. Carefully train frst-line operators' operation knowledge.

2. Engineers available to service machinery overseas timely.

3. Our sales team and senior engineer are ready for service for you in every 7x24h.

FAQ

Q1: How to install?

A1: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
For sliding table saw you just need install sliding table on machine body by 4 bolts.

Q2: How to ensure the safety?

A2: There have the overload and over heat protection, it ensure working people safety.
Q3: How long the table saw machine can be used?

A3: It depends how you use your table saw, if use it in good maintenance, at least8-10 years.
Q4: What is the Delivery time?

A4. Our delivery time is around 3-15 days. Before the machine arrive at the port, the shippingcompany will call you.
Q5: Where is your company located?

A5: We are Chinese company. Our city is in Qingdao. It is the biggest seaport in the north ofChina.
Q6: Are there any requirements for the dealer?

A6: There is no special conditions to be our dealer. You buy from us and sell to your customers. We introduce customers to you.
